Re: Terry's Layout
« Reply #45 »
Here's an article about the layout I just finished for the local newsletter:

Terry Builds a Layout.

Progress continues on the O gauge floor layout. The track is back down, but only the outer loop is permanently wired. The other two are just on lockons. I'm going around each circle of track and connecting feeders to the track, installing blocks, and adding insulated outside rails where needed for the streets and signals.

Here's some pictures of the layout as of October 11th.

  [ You are not allowed to view attachments ]

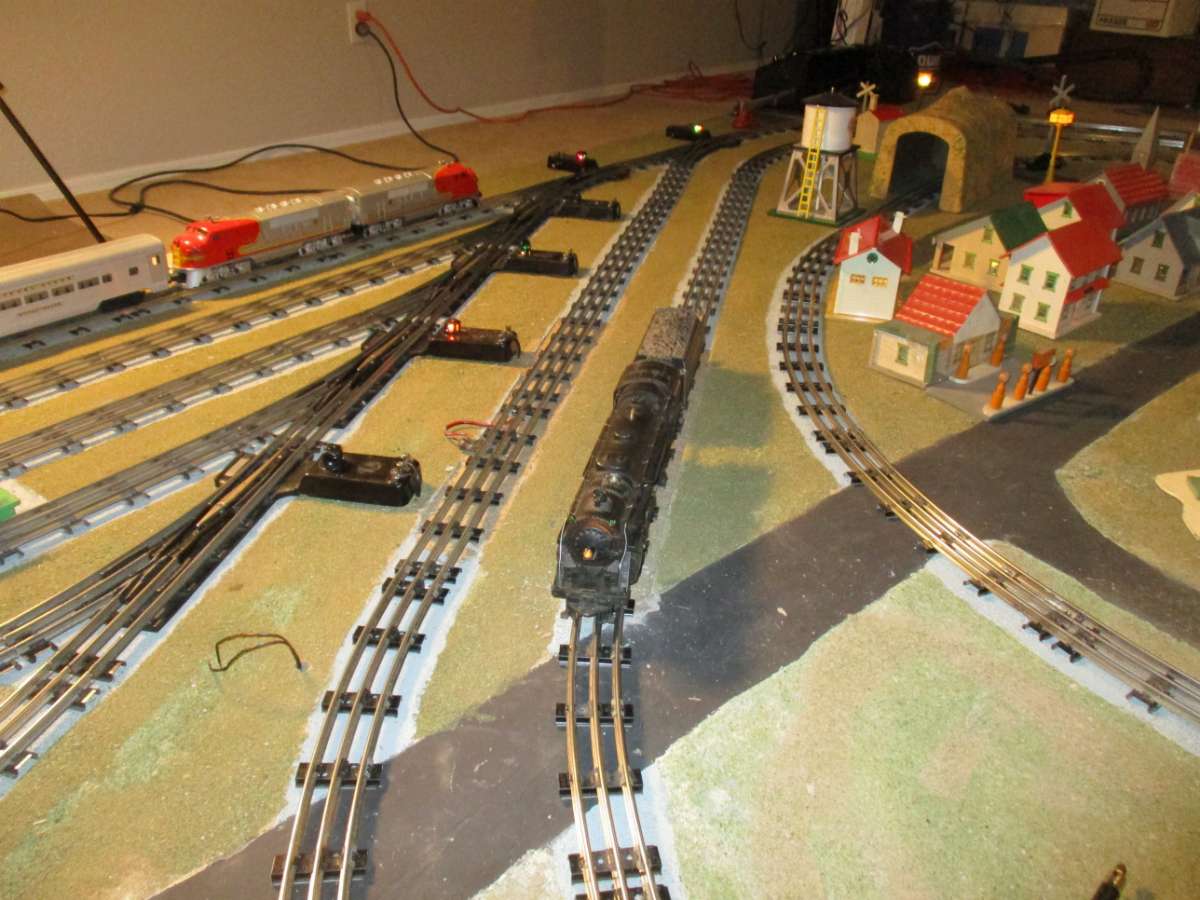

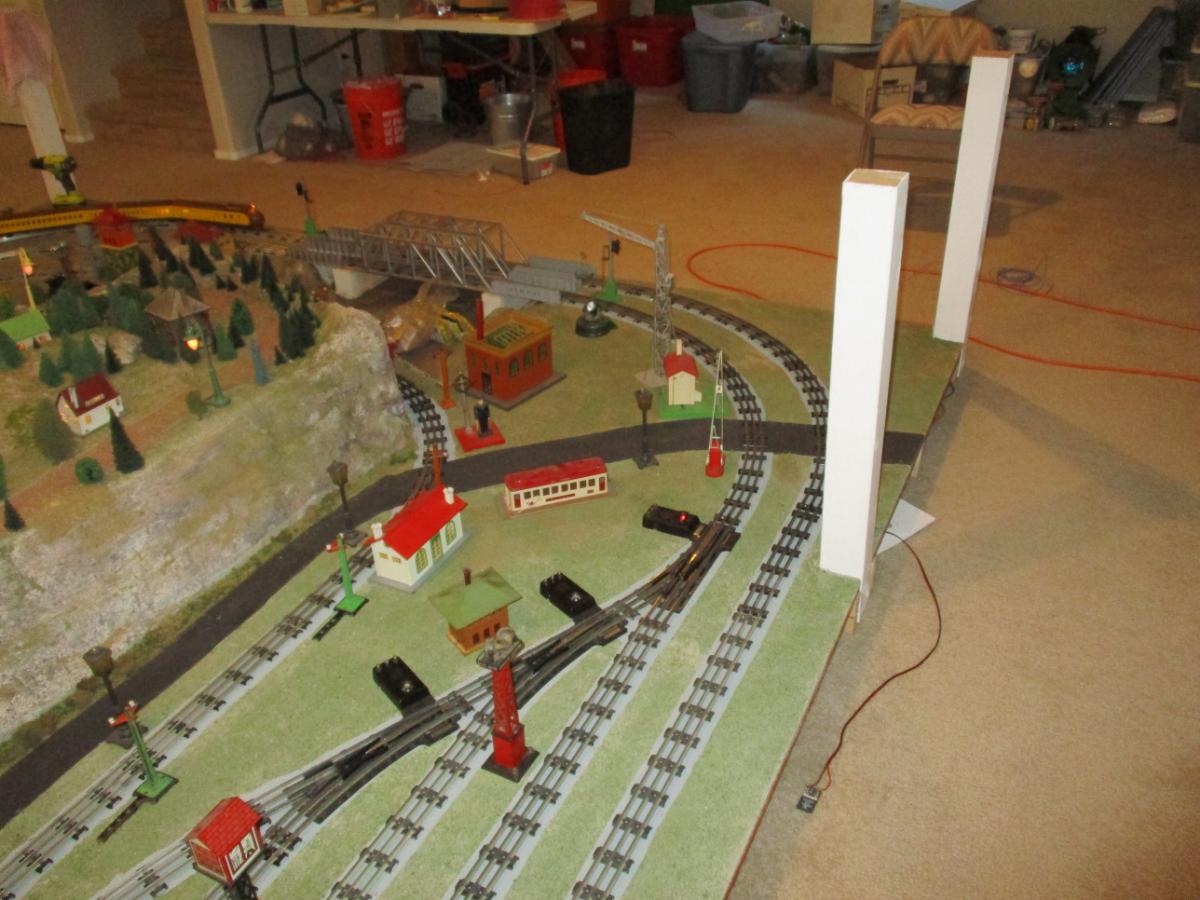

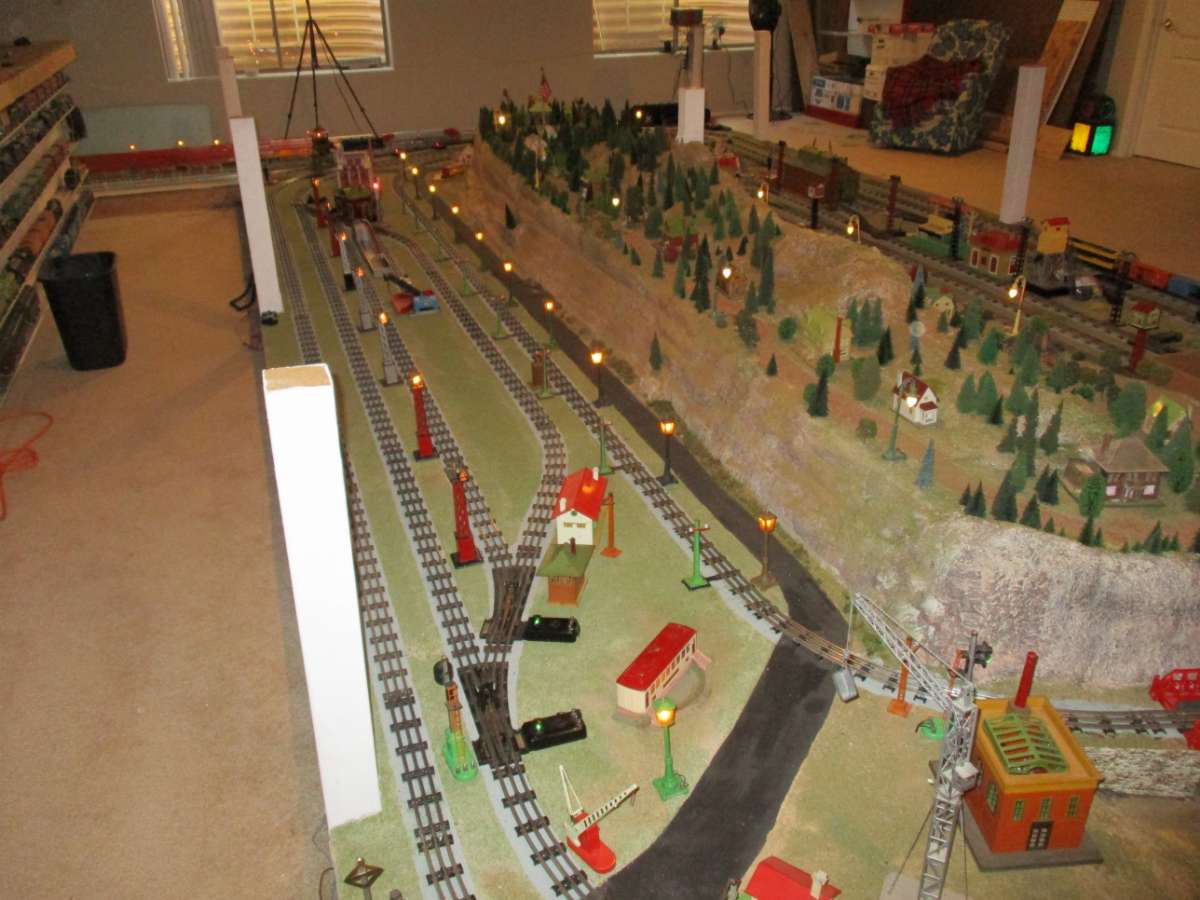

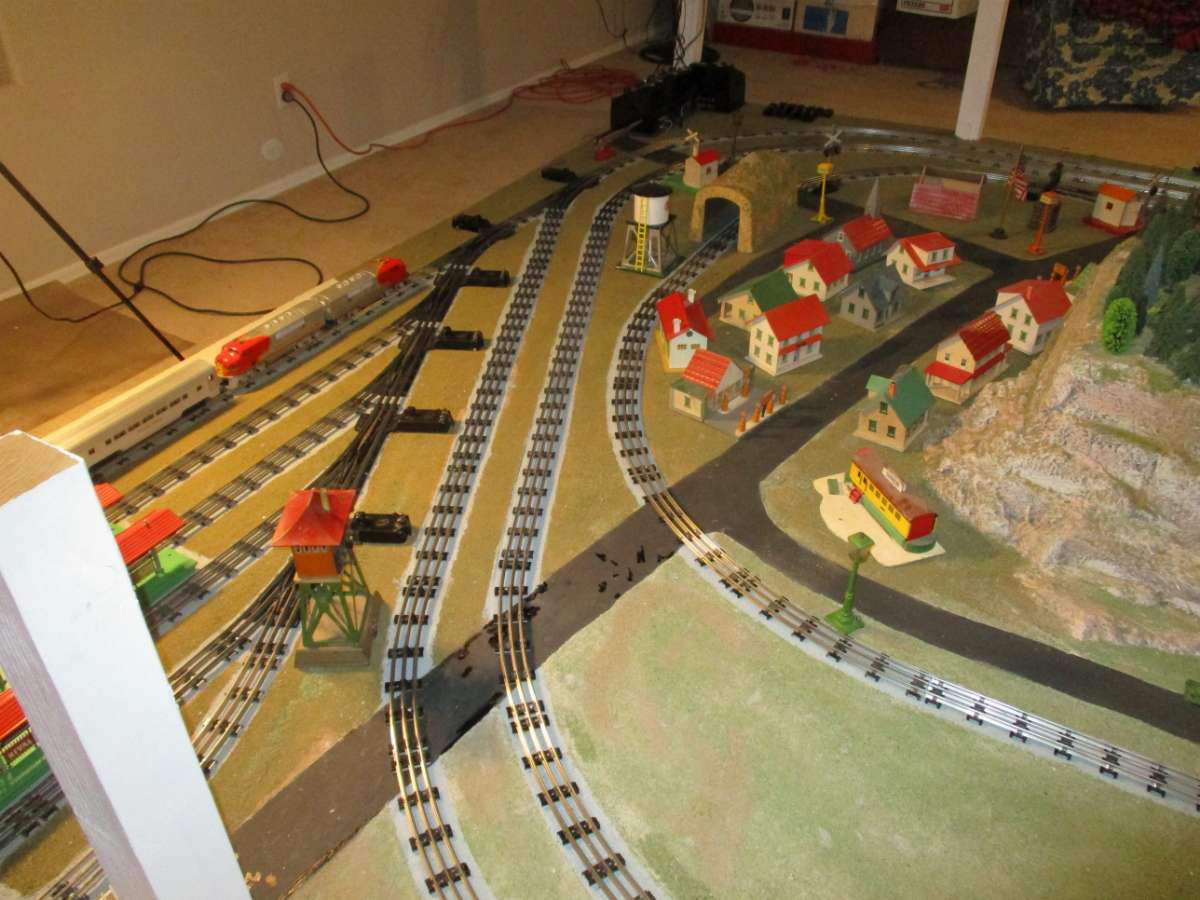

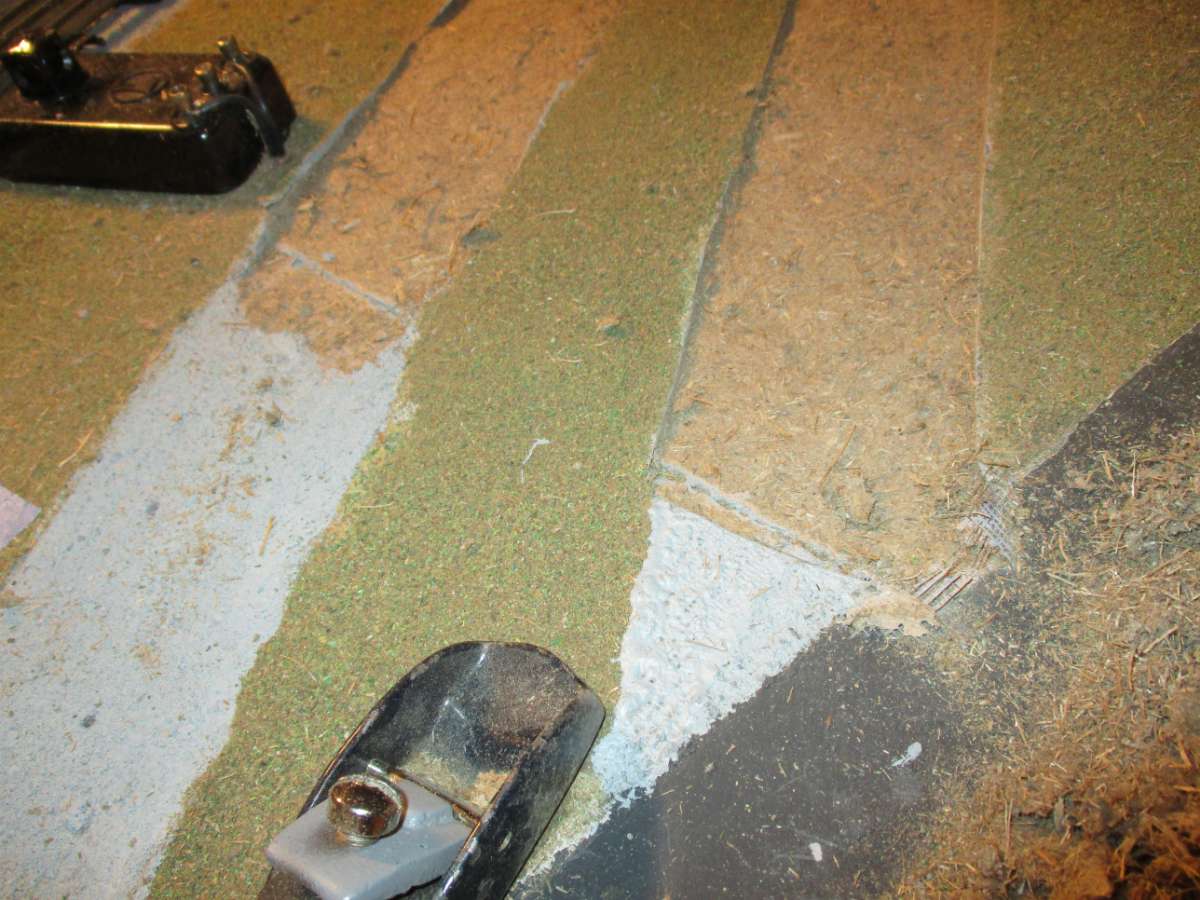

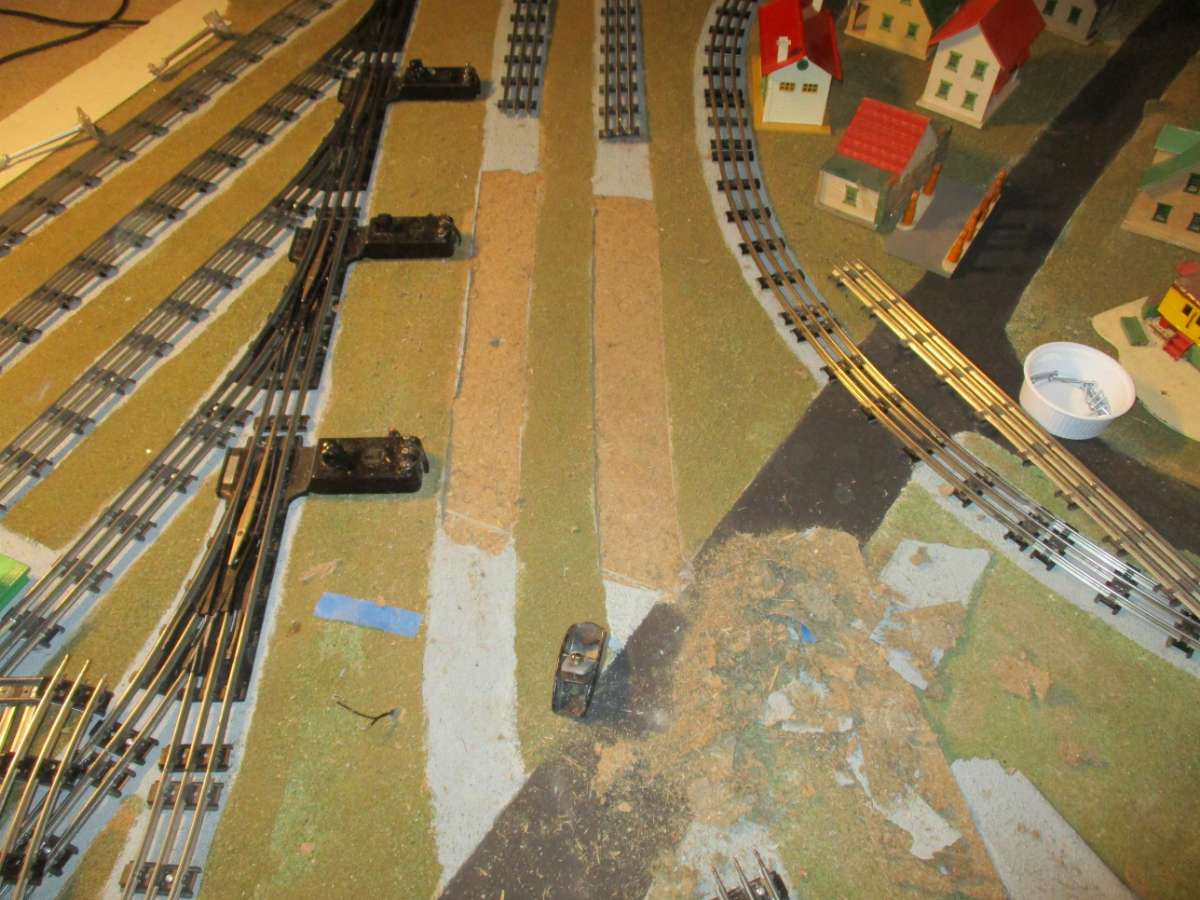

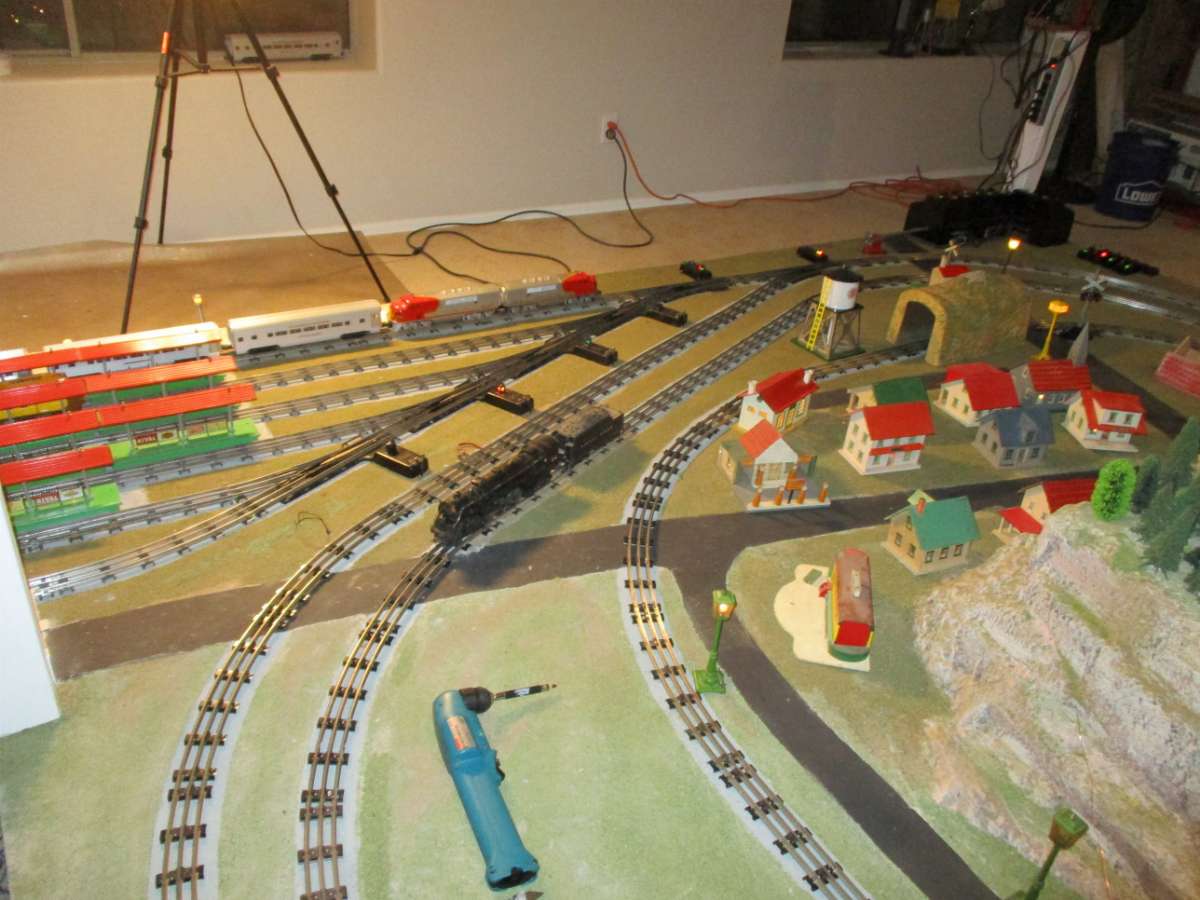

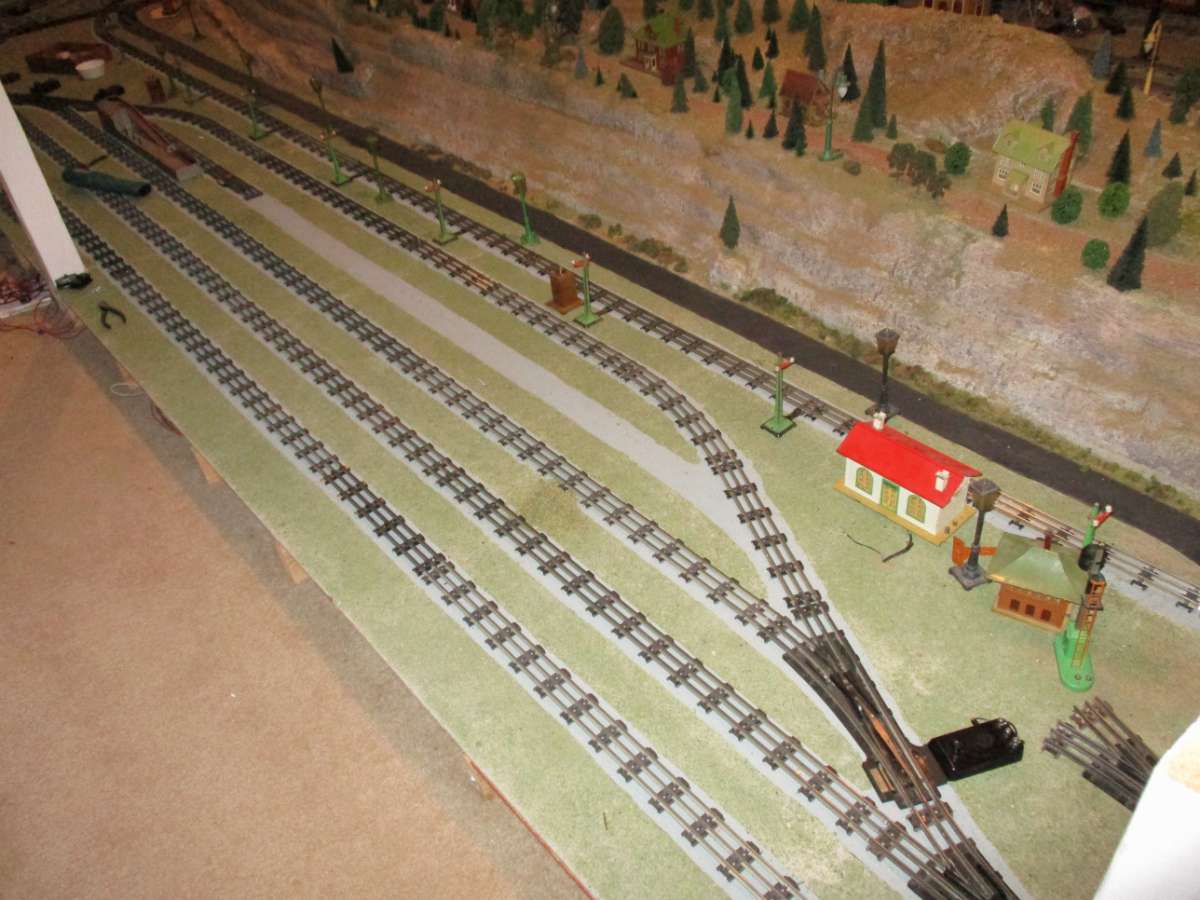

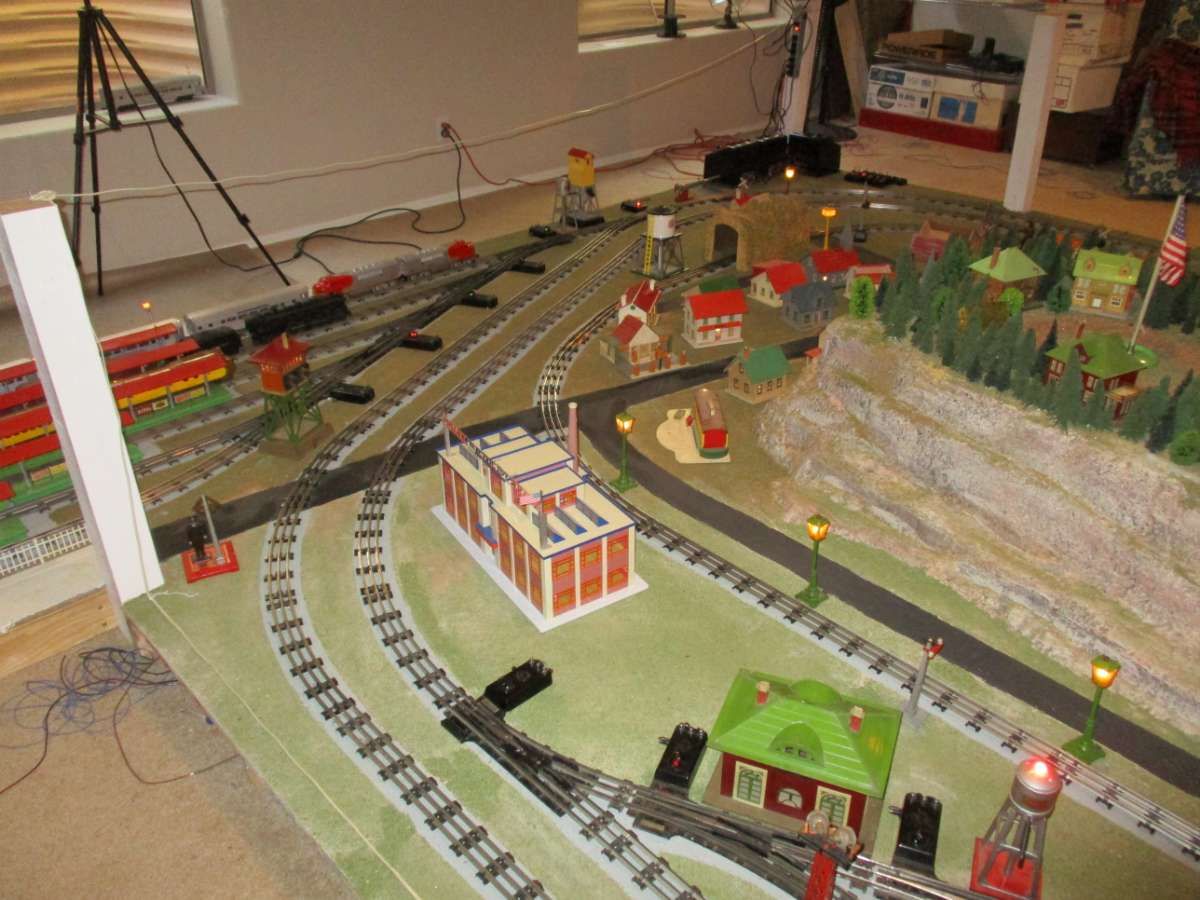

The west end of the layout with the ladder to the passenger yard, the end of the mountain, the Schoenhut village and the backside of the transformers. That's a difficult to find prewar 027  Lionel 1022 tunnel.

  [ You are not allowed to view attachments ]

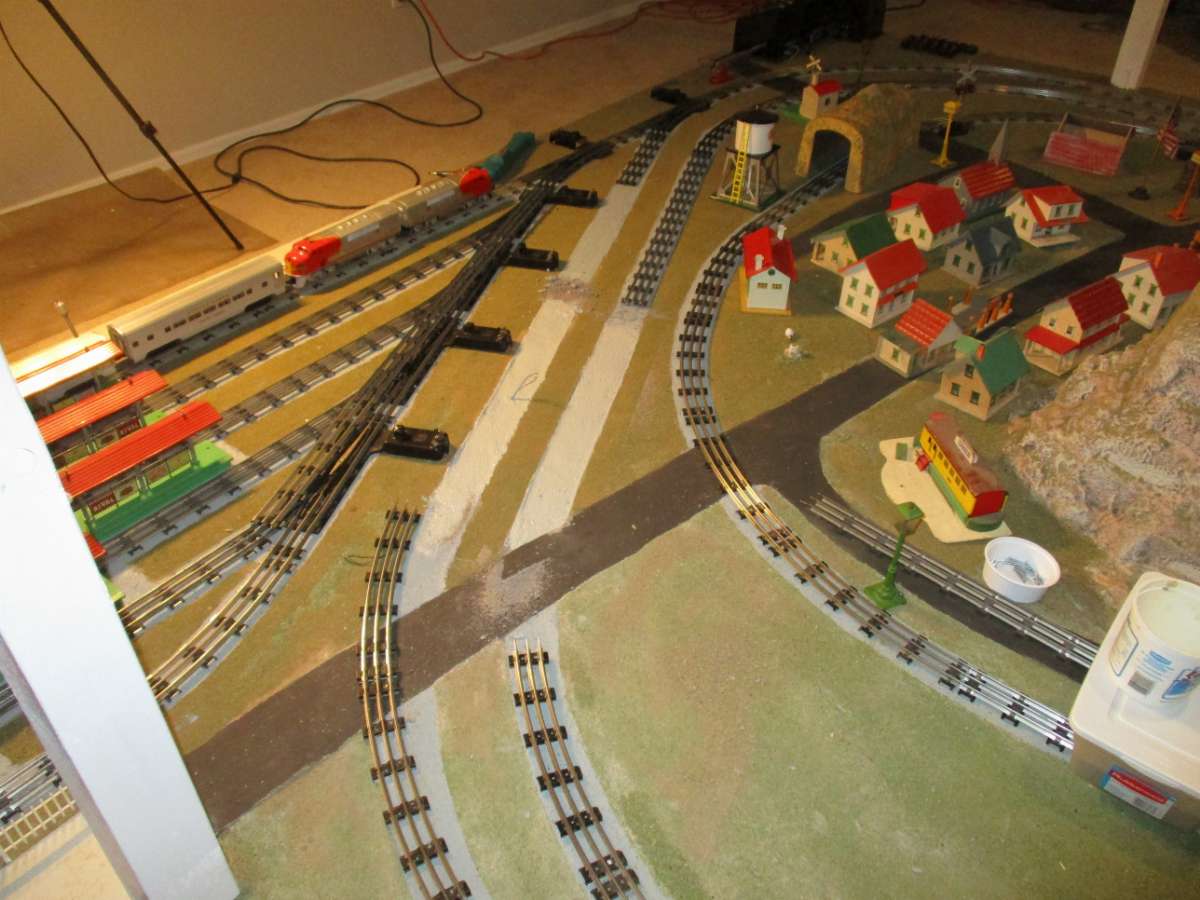

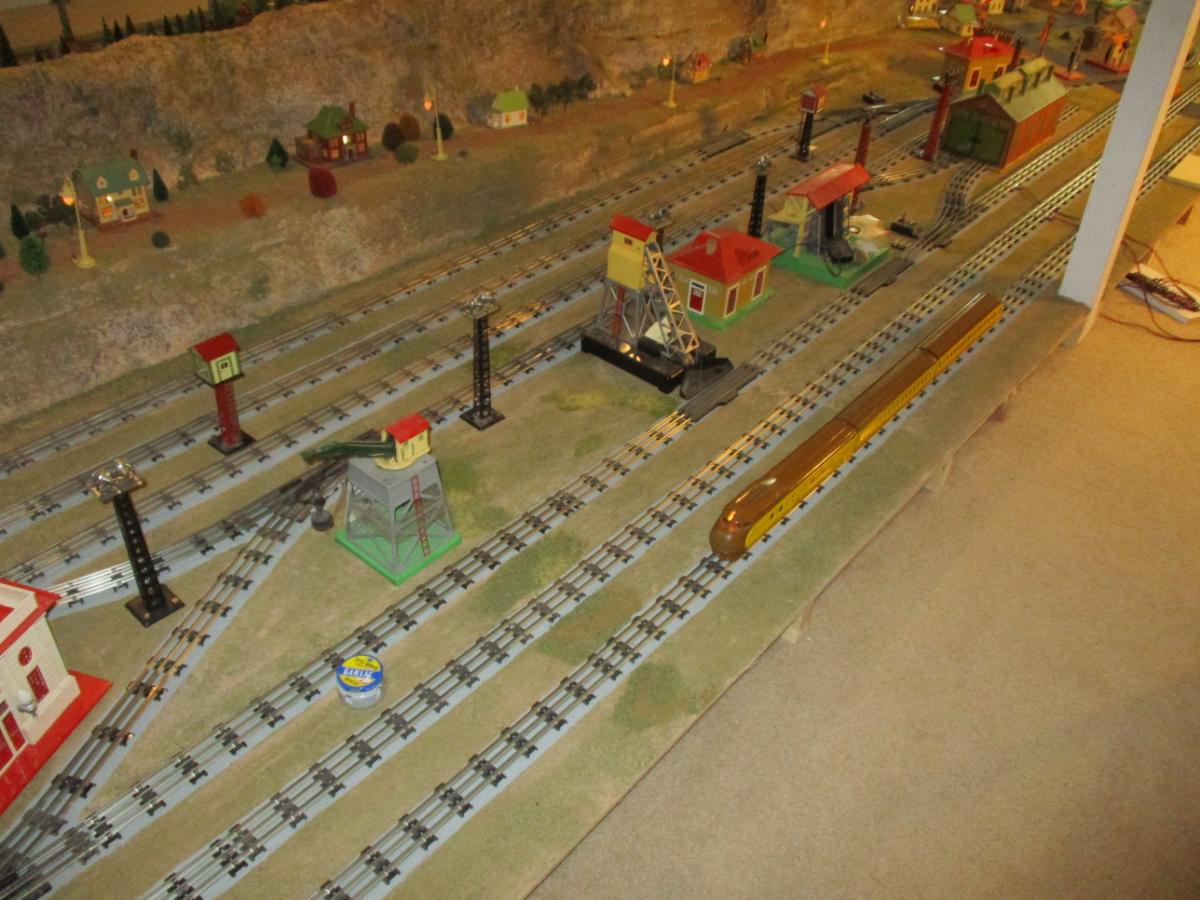

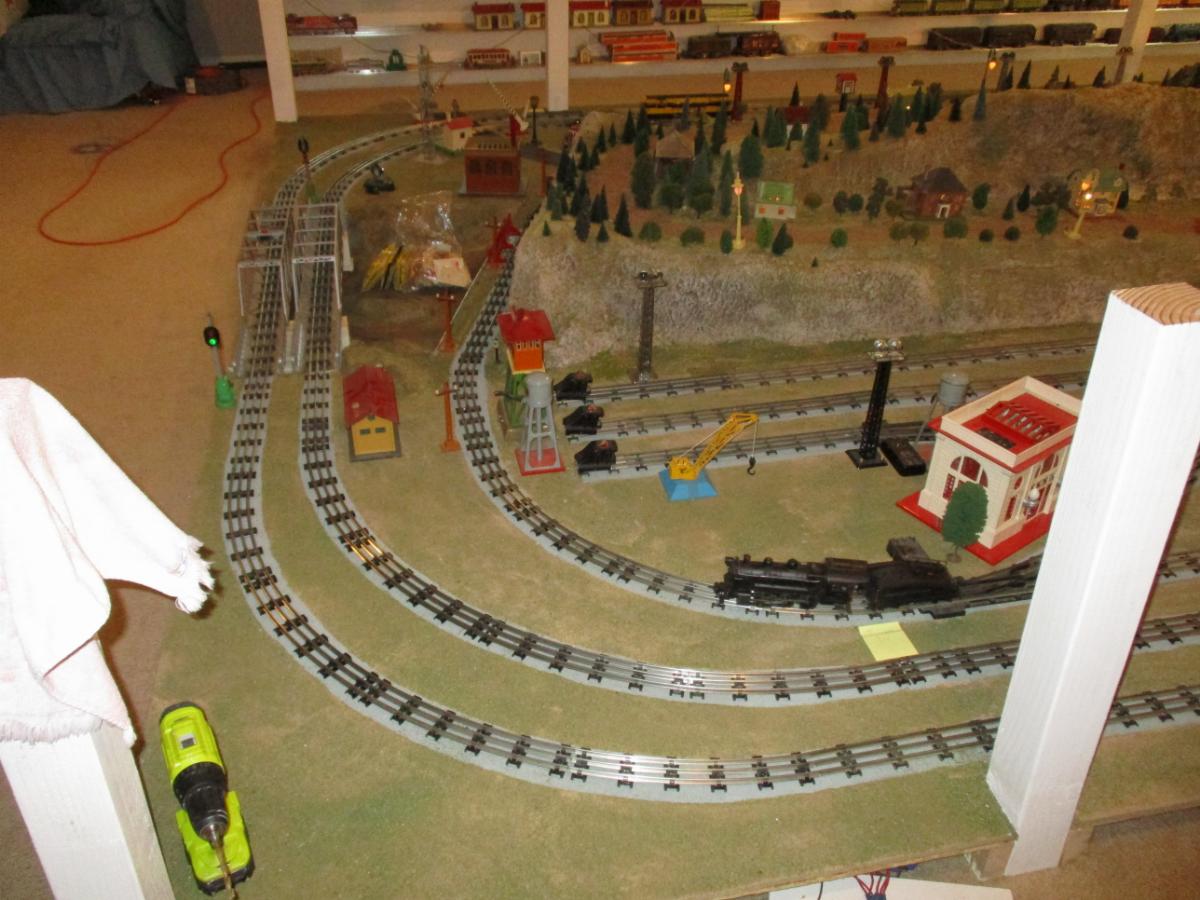

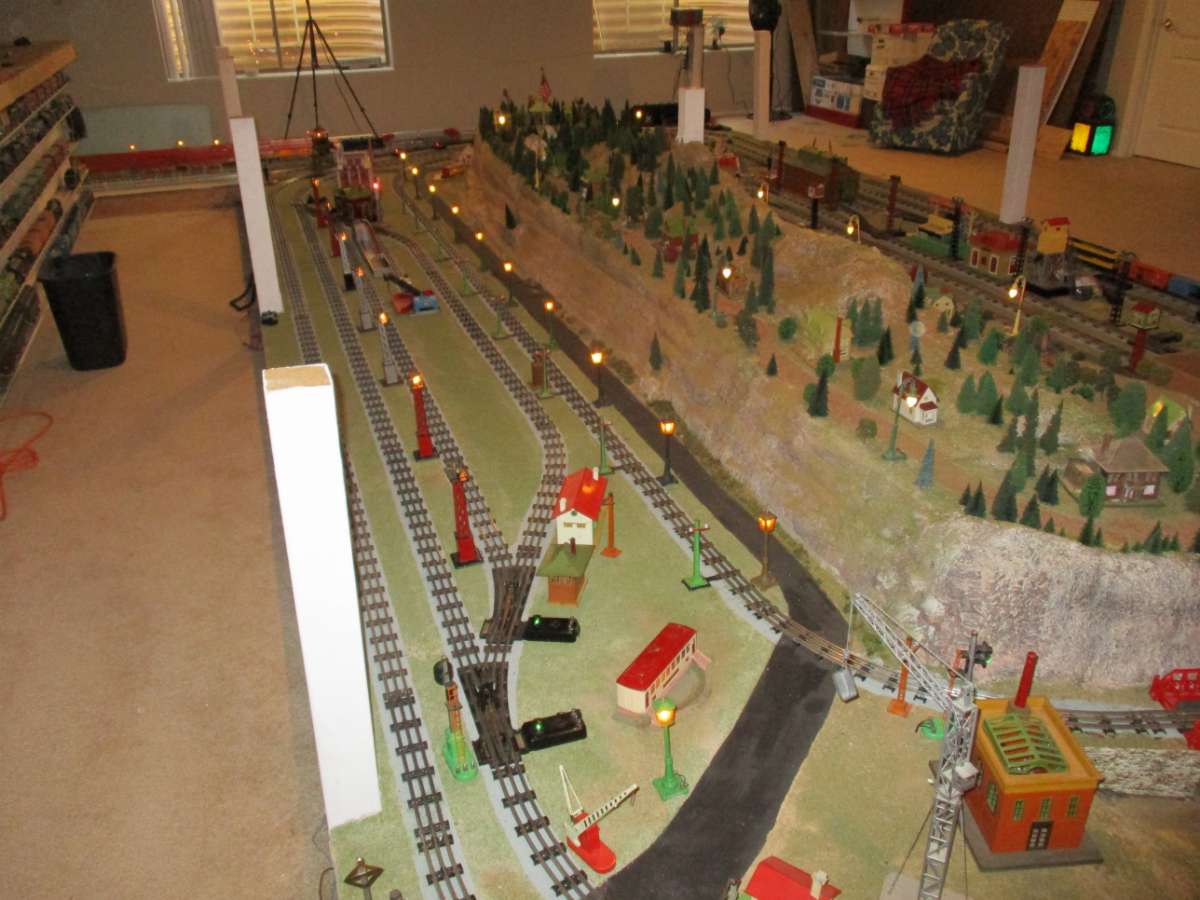

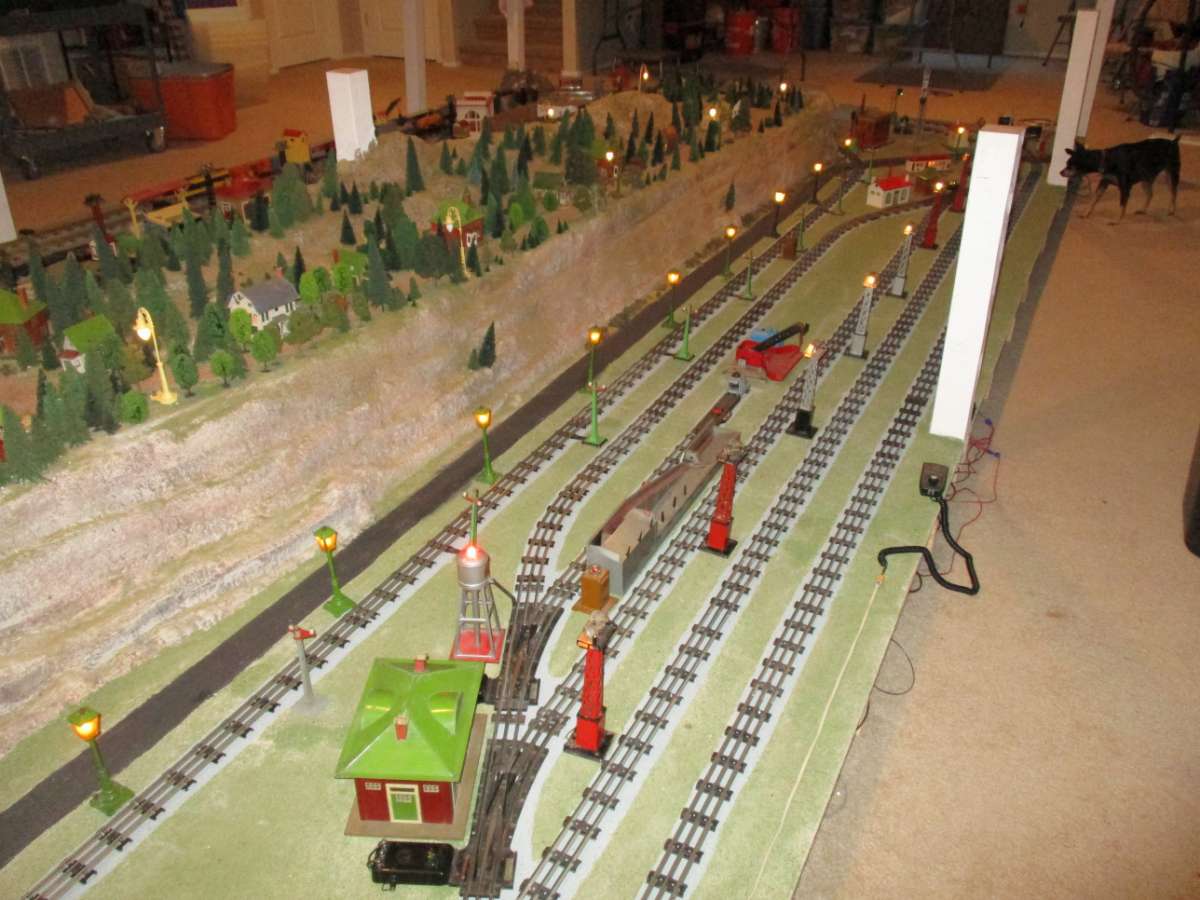

This is the south side of the layout. The inner and outer lines just go through here. The middle line has passing sidings. My goal is to put trains on the sidings and use relays to run them in opposite directions. With the mountain blocking views from the north, you'll see trains running back and forth, but not the parking sidings.

At this point, I'm not sure I can get trains to run automatically. The switch machines just aren't reliable enough. The youngest of those switches is 78 years old. Those are the best switches I have mated to the best motors.

  [ You are not allowed to view attachments ]

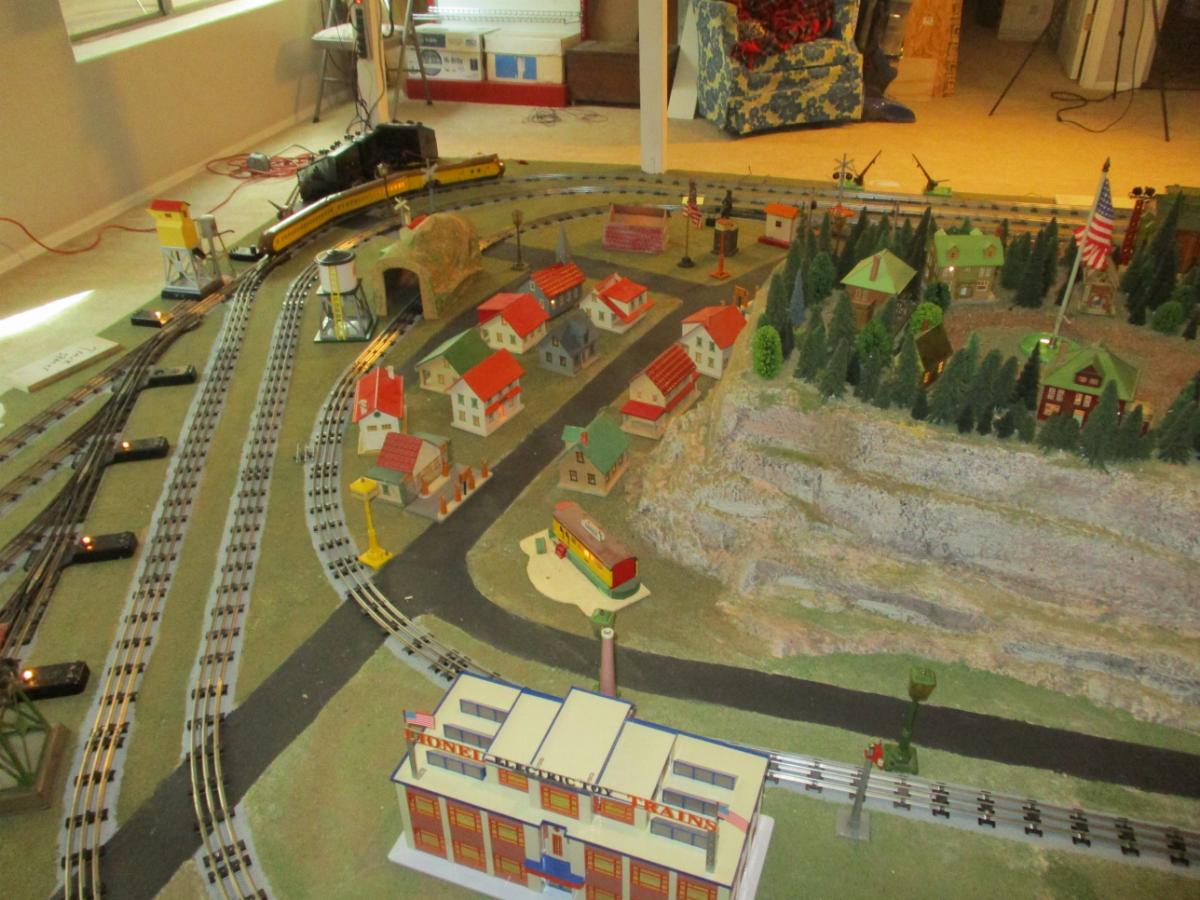

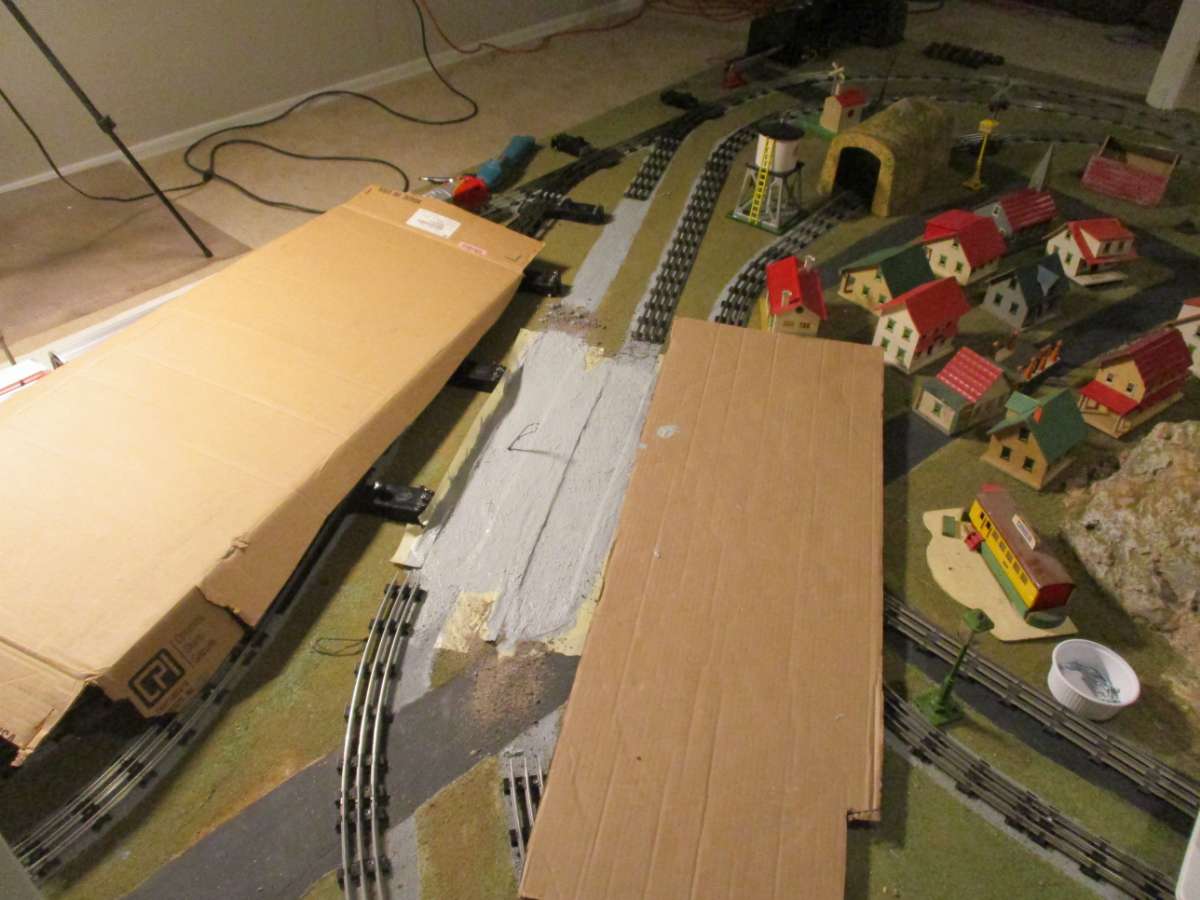

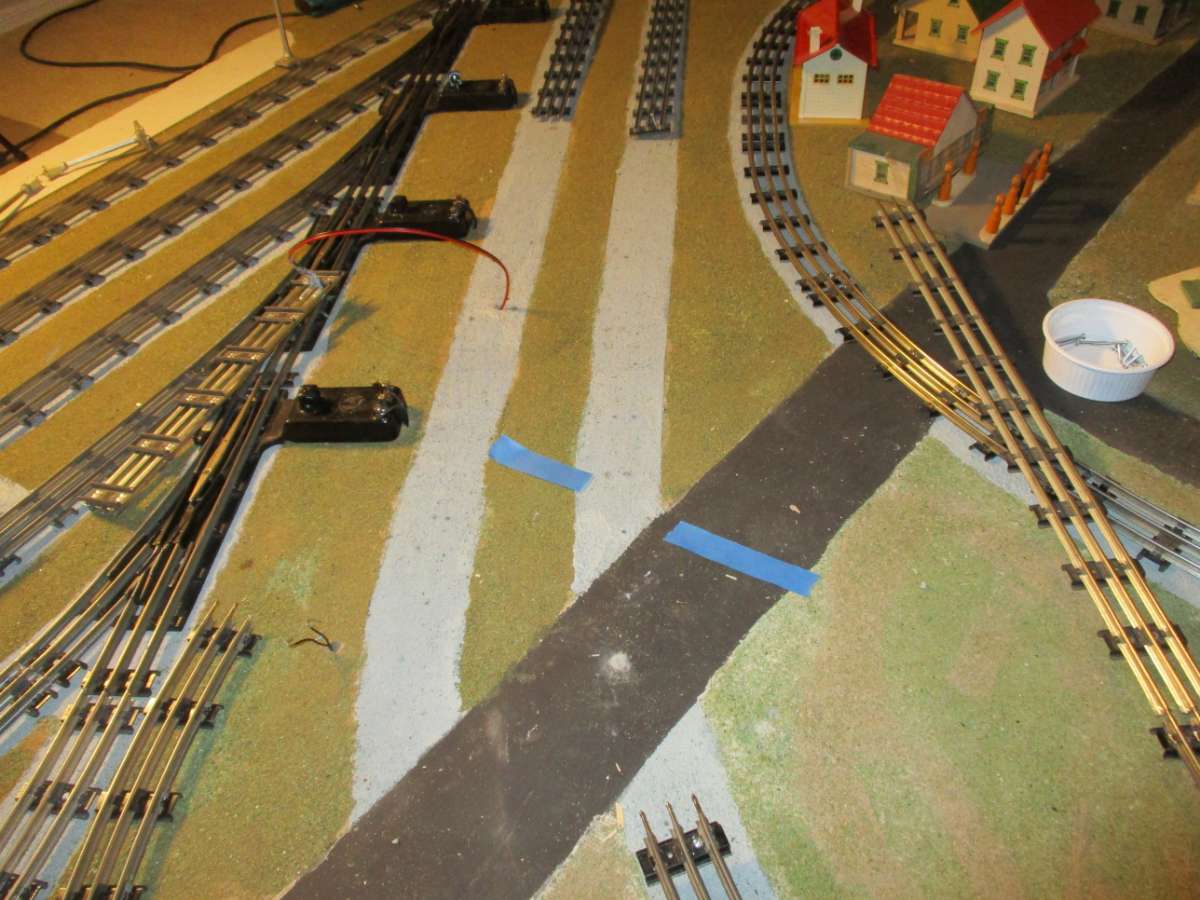

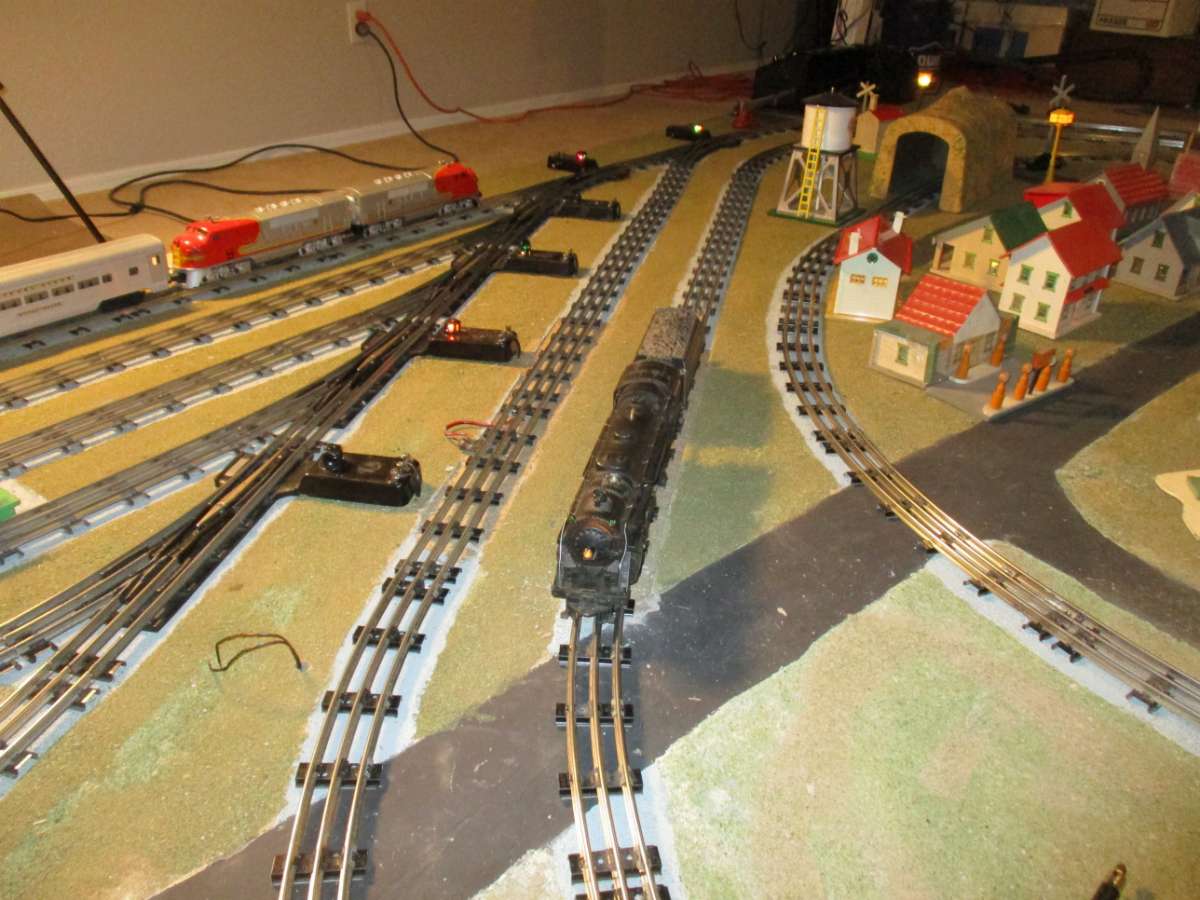

The southeast corner of the layout has a road crossing and gives way to the marsh with the bridges. To wire the trains and track near the edge and back to the diner is quite simple. I just stick some wire through a hole and reach under and grab it. For the areas farther back from the end, I have a 40 inch long copper rod I tape the wires onto.  This is a learning experience. When I jam the stiff rod though the layout, it snags on the carpet. Last night I realized a small bit of Masonite slid  under the hole would help.

  [ You are not allowed to view attachments ]
  [ You are not allowed to view attachments ]
  [ You are not allowed to view attachments ]
  [ You are not allowed to view attachments ]

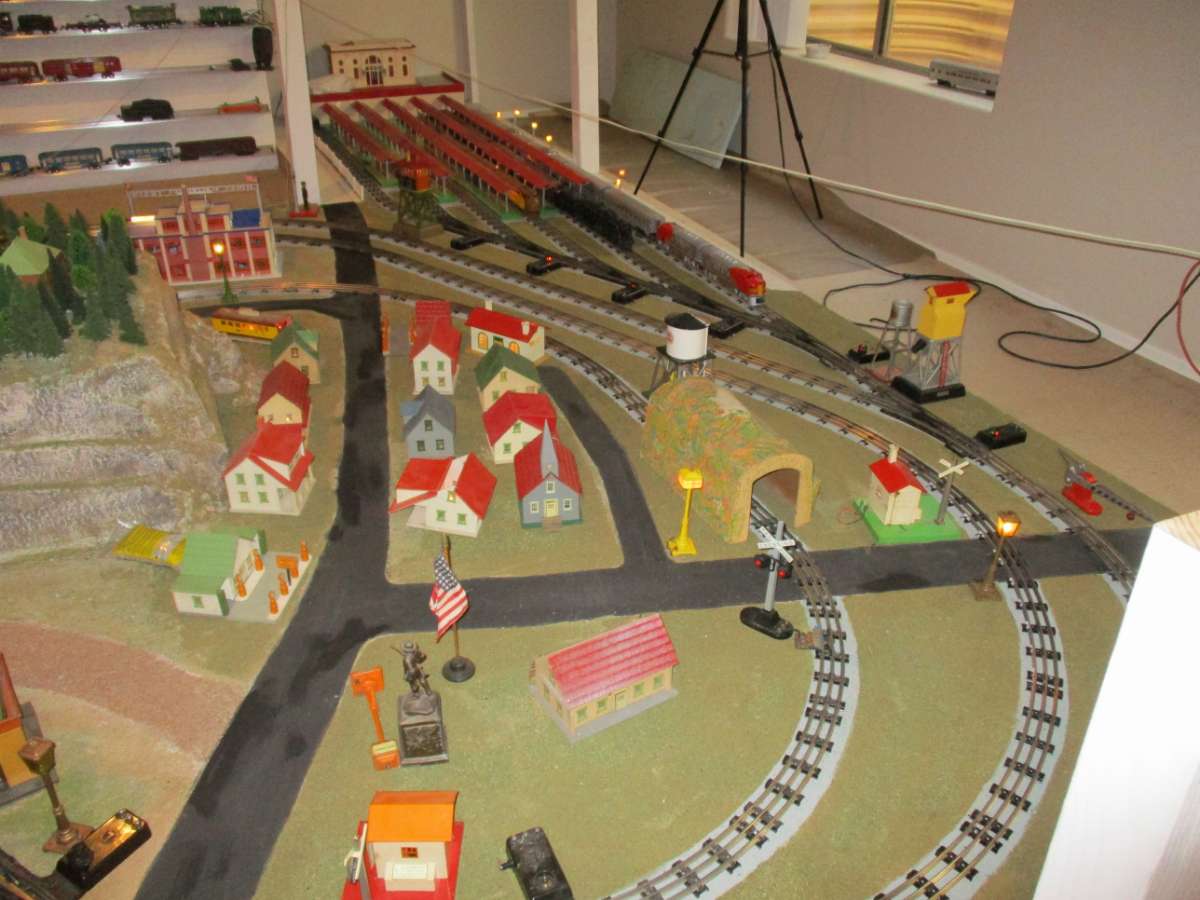

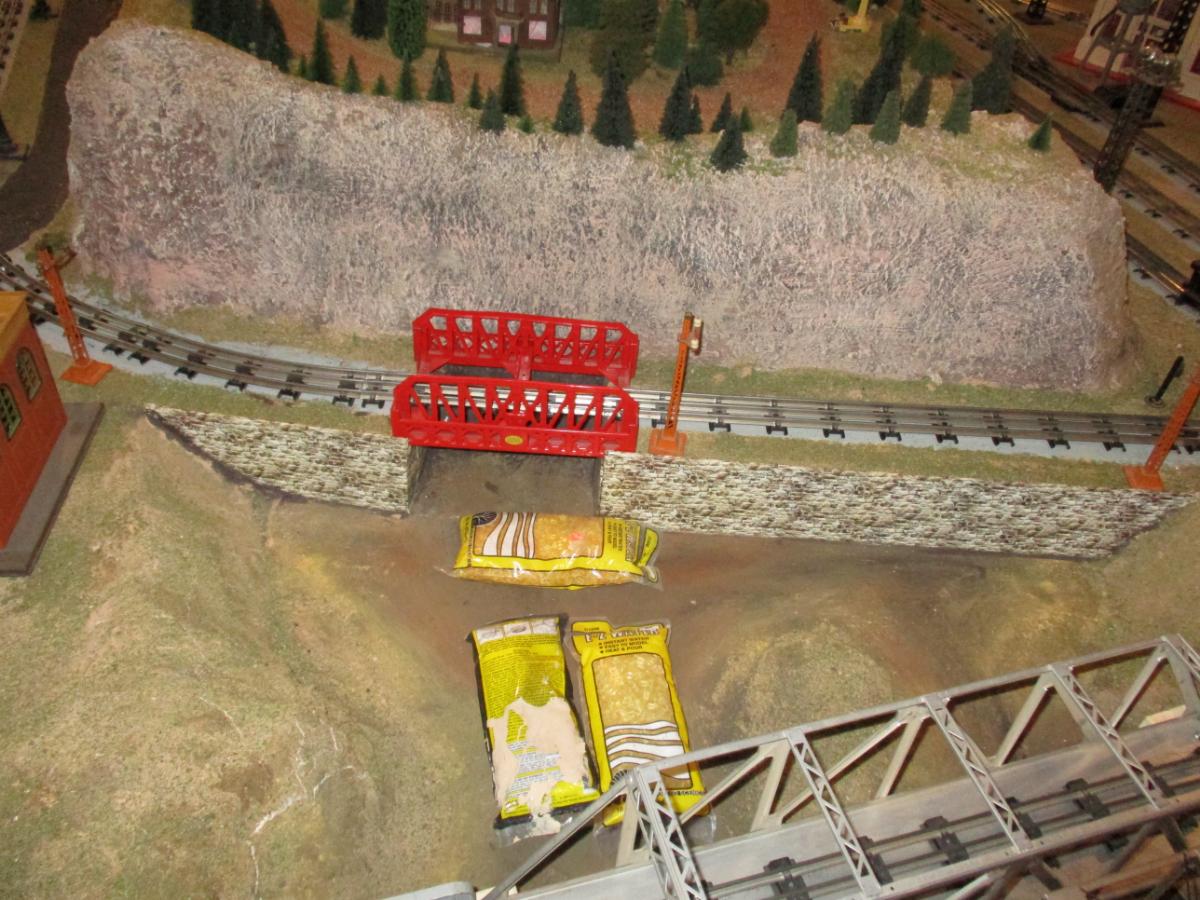

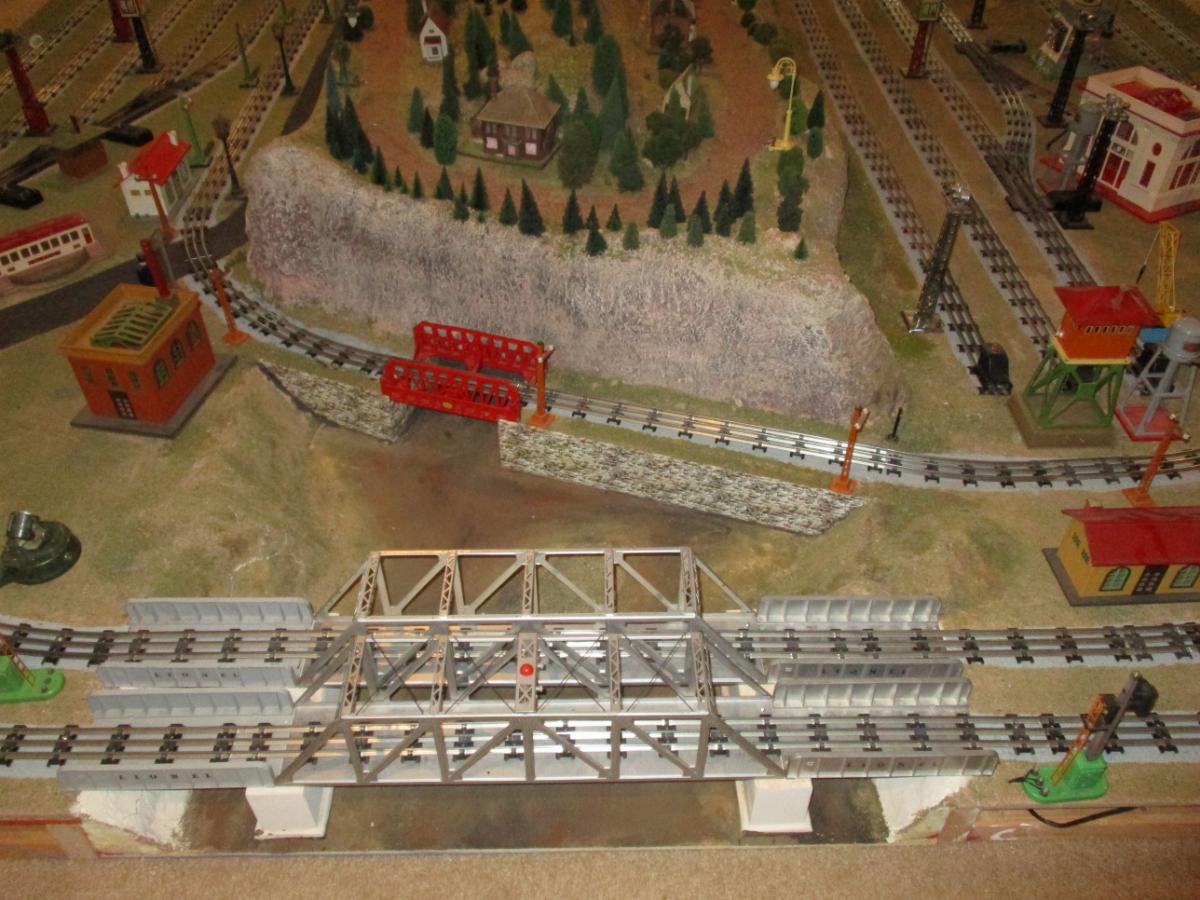

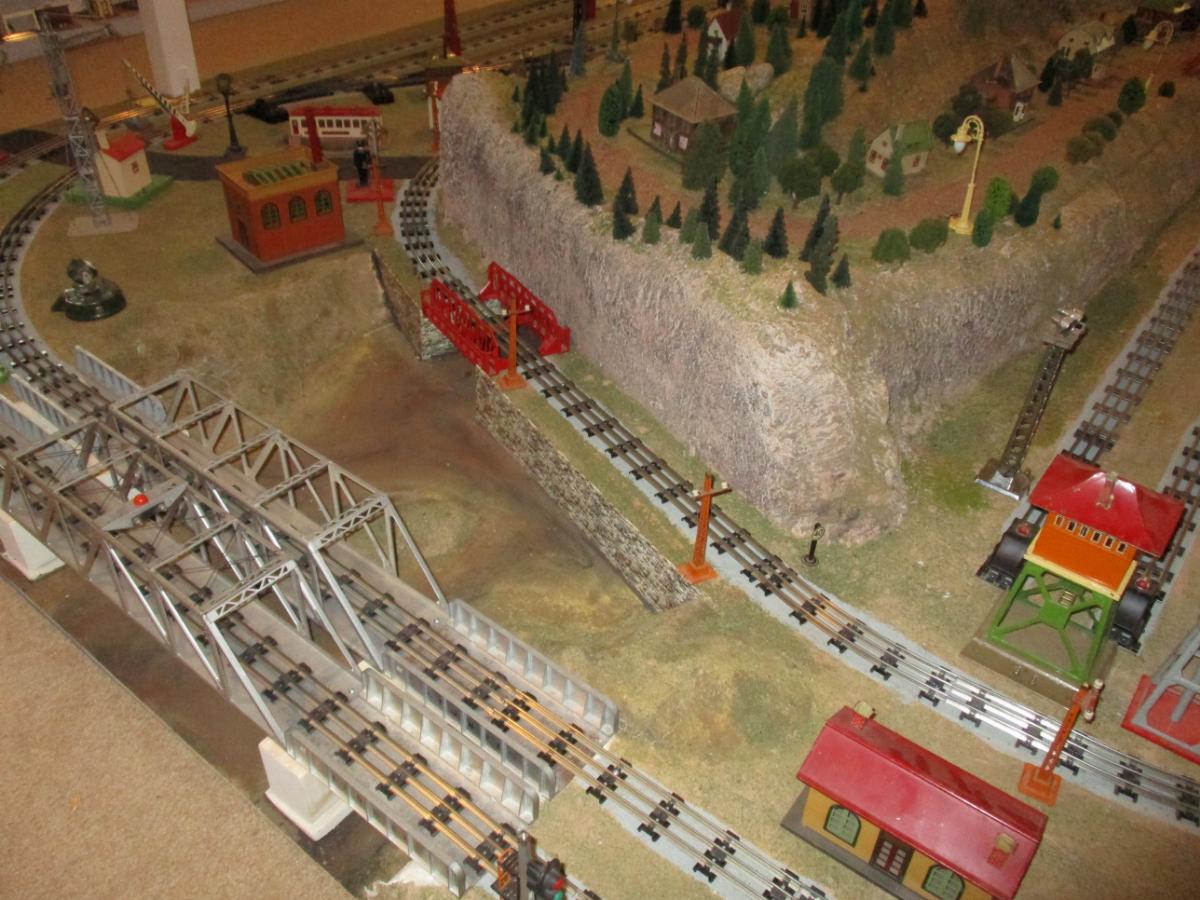

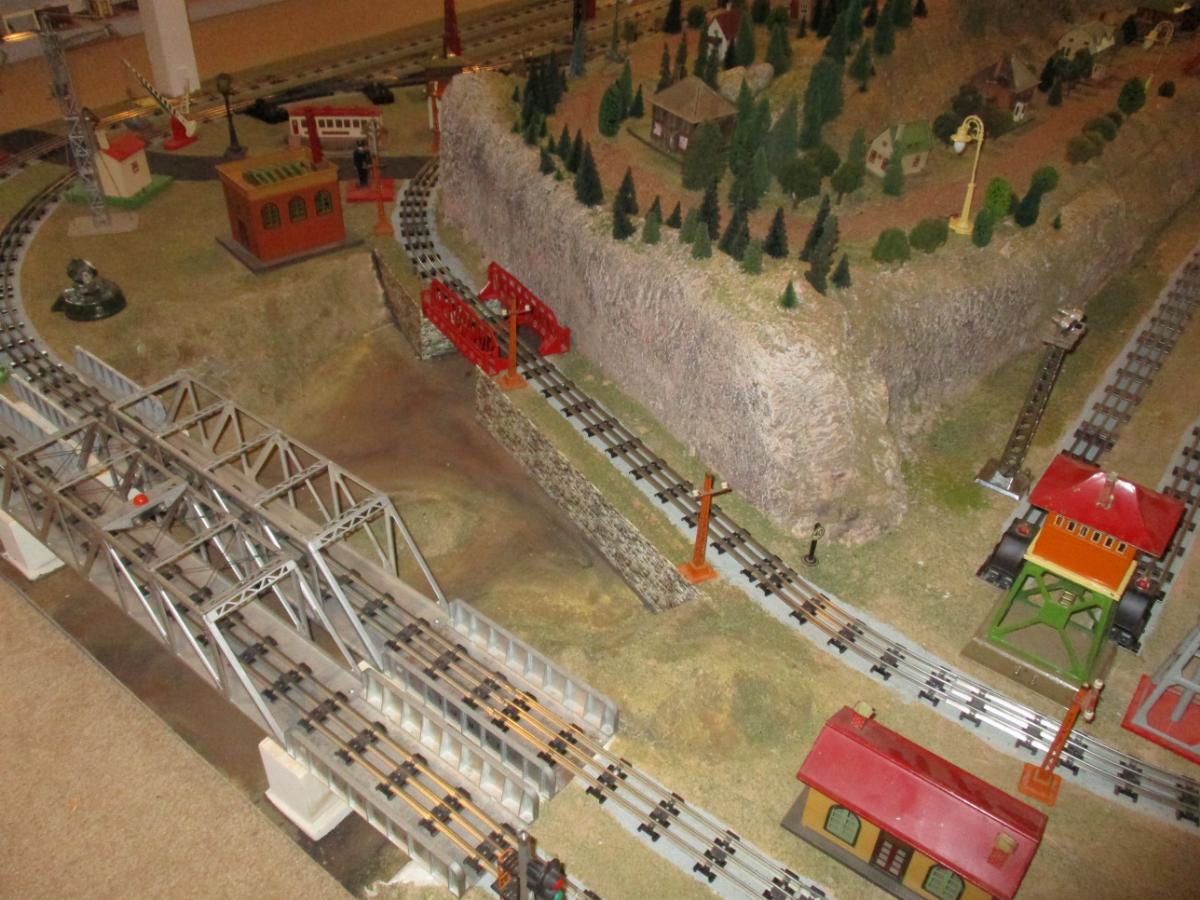

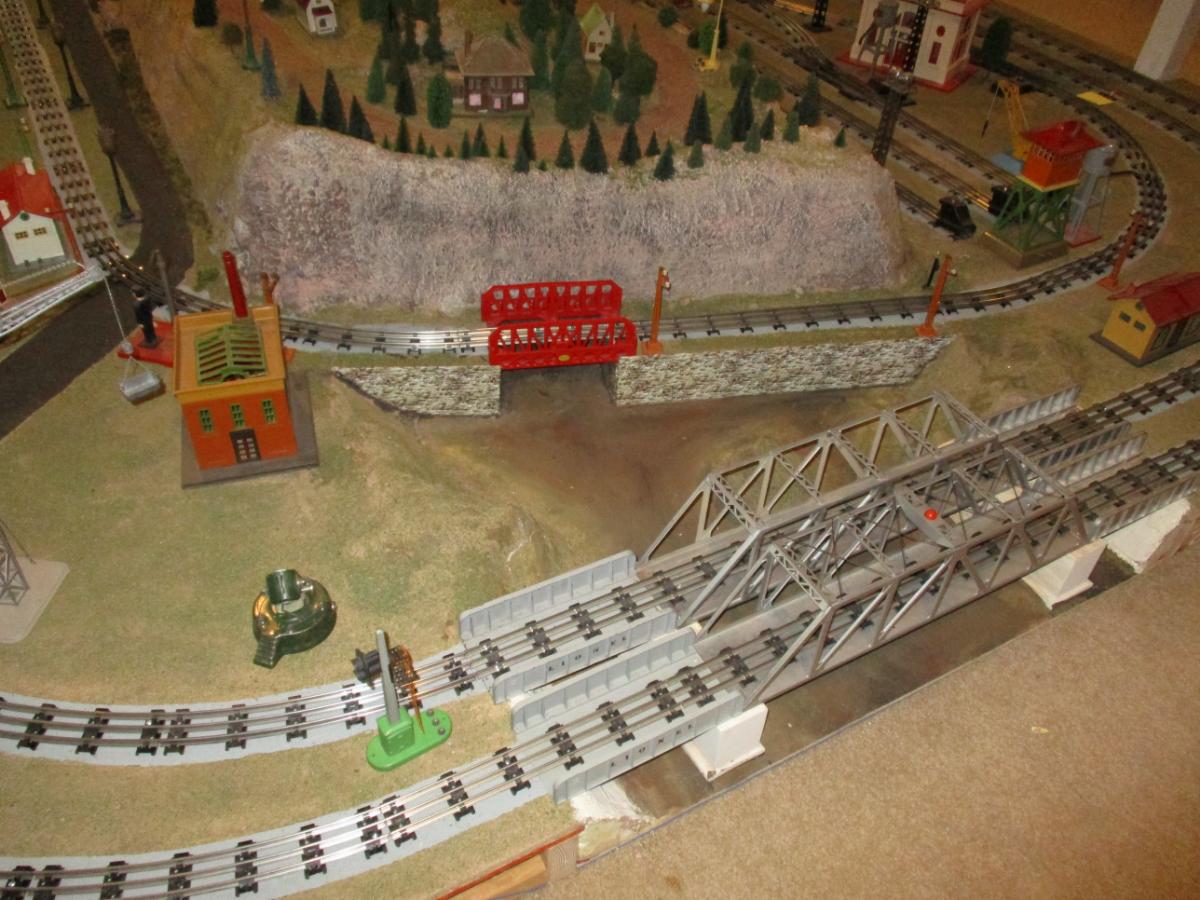

Pictures 4 thru 7 show the bridges and the marsh area. I have a few dozen wonderful weeping willow trees to sick in here. Once I get the  face board on, I'll pour the Woodland Scenics water into the marsh and plant the trees.

The piers for the bridges were the result of a lot of time spent trying to figure out something that would look good that I could make with what I had. I ended up cutting a ¾ inch slice off a 4 by 4, and then using the slice as the base. It looks good. I have another bridge with a light somewhere.

In the last picture with the bags of water you can see I already cracked the side of the marsh. That's the only area of the whole layout where I didn't color the plaster. This happened because I was using old bags of layout material and the crap failed to set. I scraped the mold-a-scene off and then used whatever the bag was and got even worse results. In my frustration at having to redo it again, I forgot to add pigment to the plaster.

I cracked the marsh when I lifted the side of the layout to stuff a wire under the water area. You can see the 153 block signals at the bridge approaches. I'm wiring them up to relays. The trip wires go from one side of the marsh to the other.

If you watch the video you can hear the relay clicking and buzzing when the City of Portland comes out of the bridge. That's an old 1950s era telephone relay. I ordered a box of new, and hopefully, quieter relays after listening to it click for a while.

  [ You are not allowed to view attachments ]

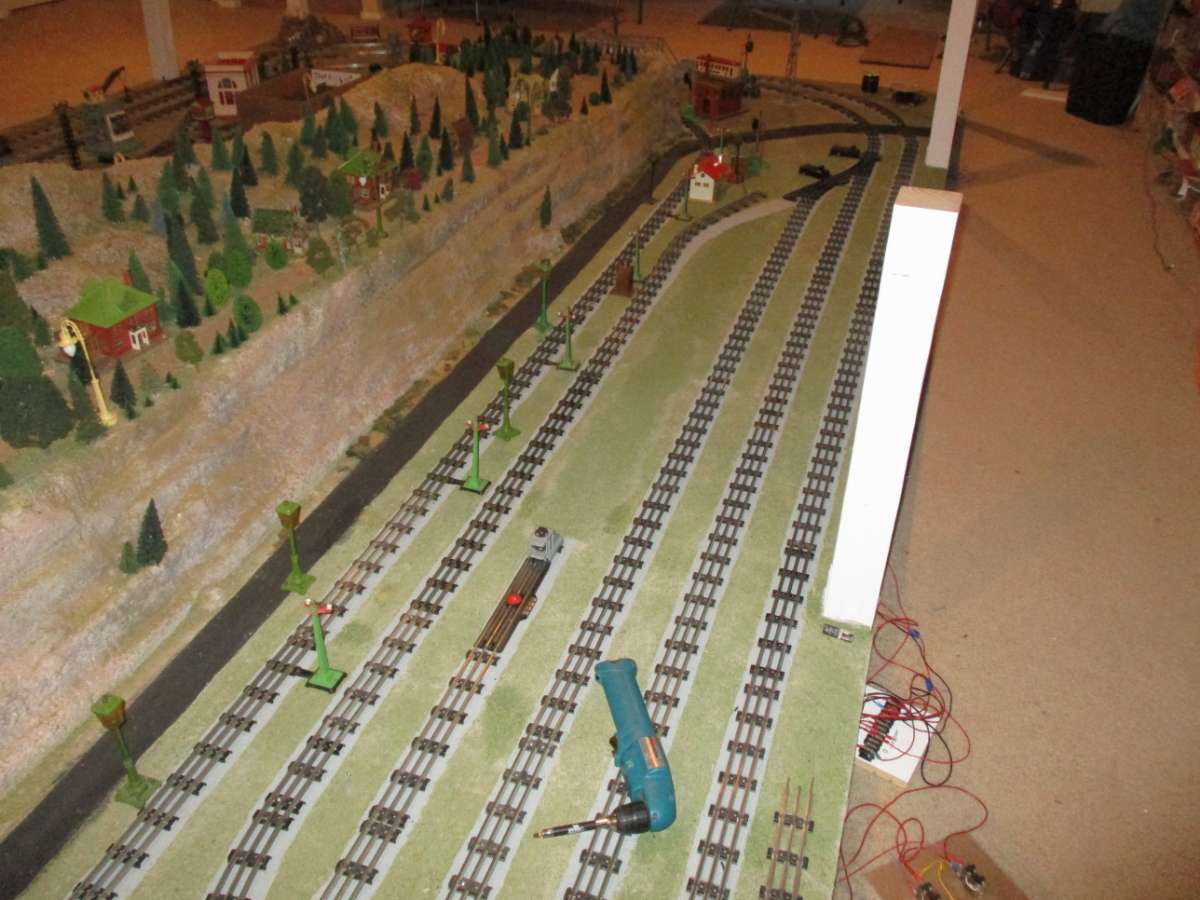

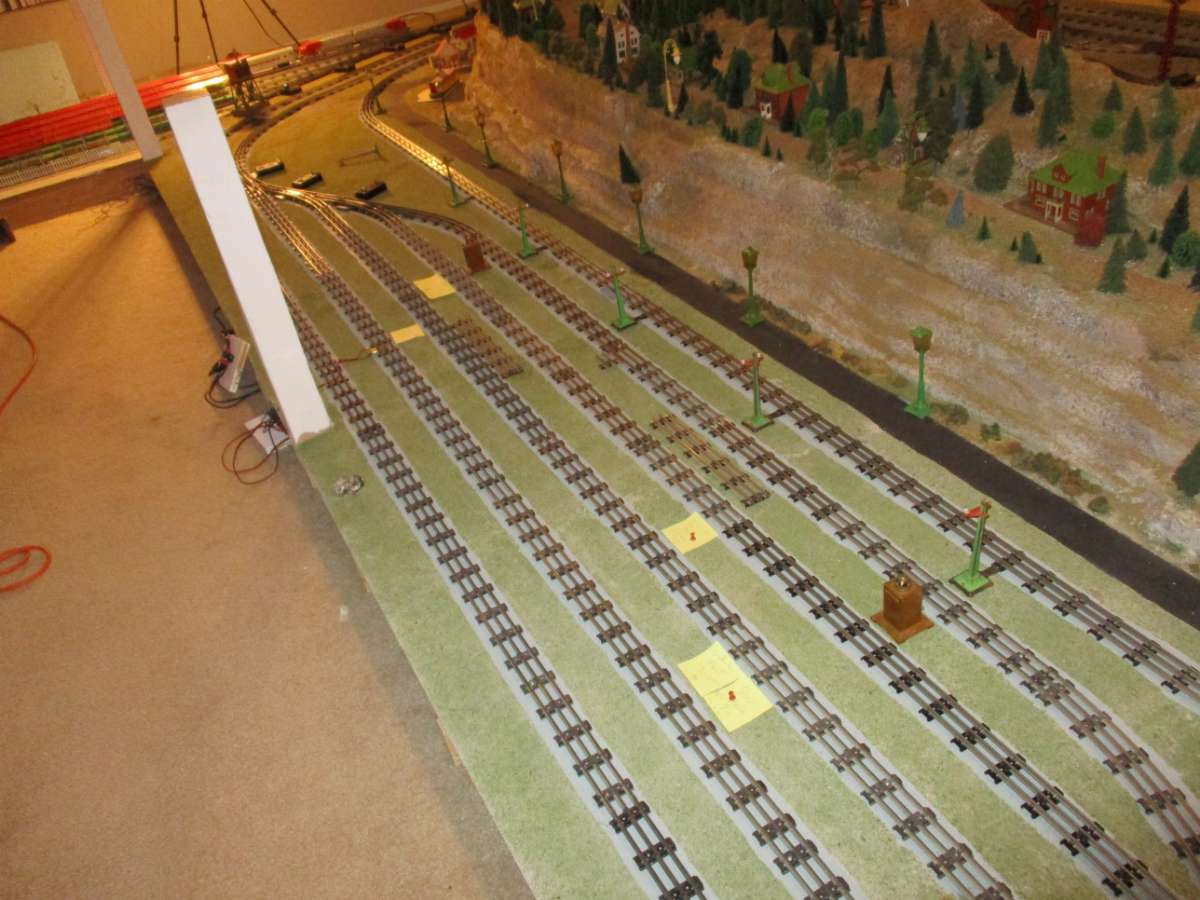

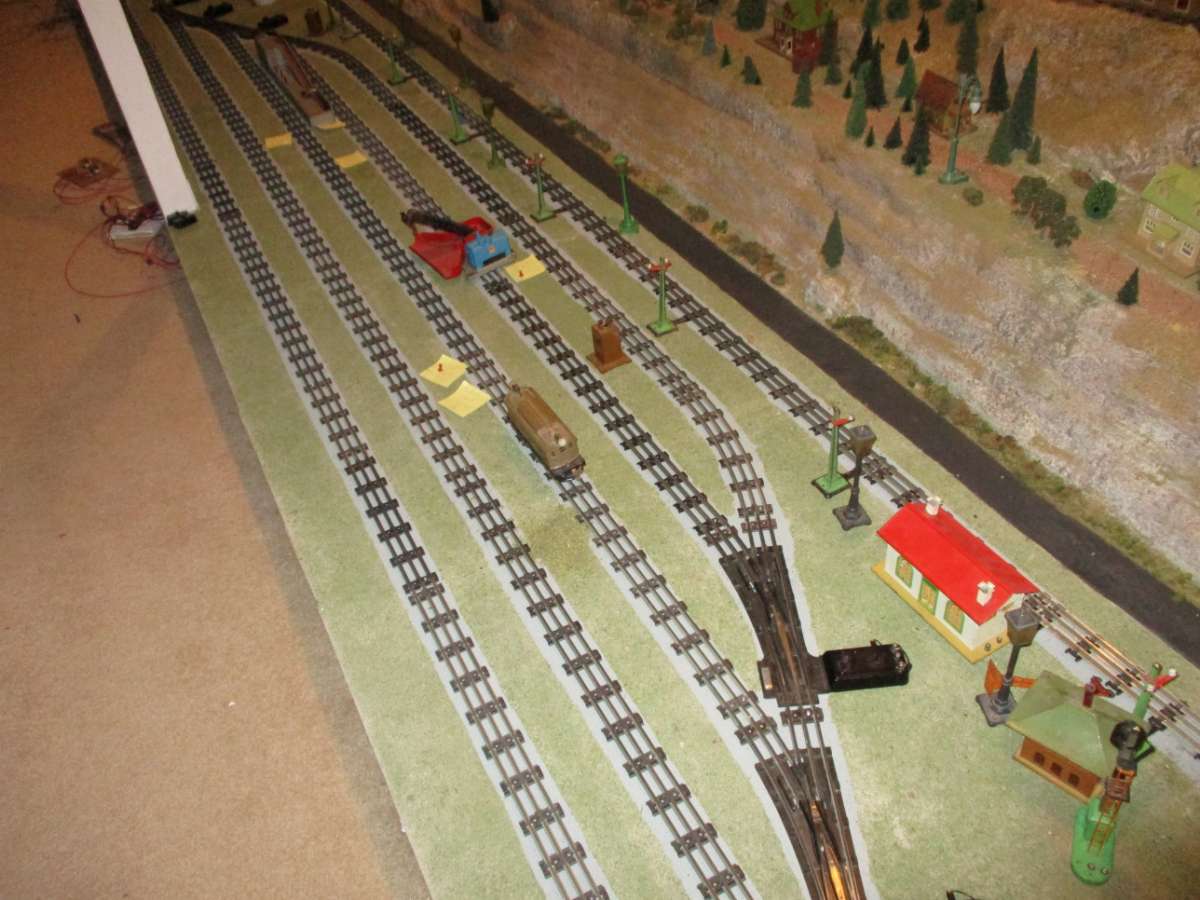

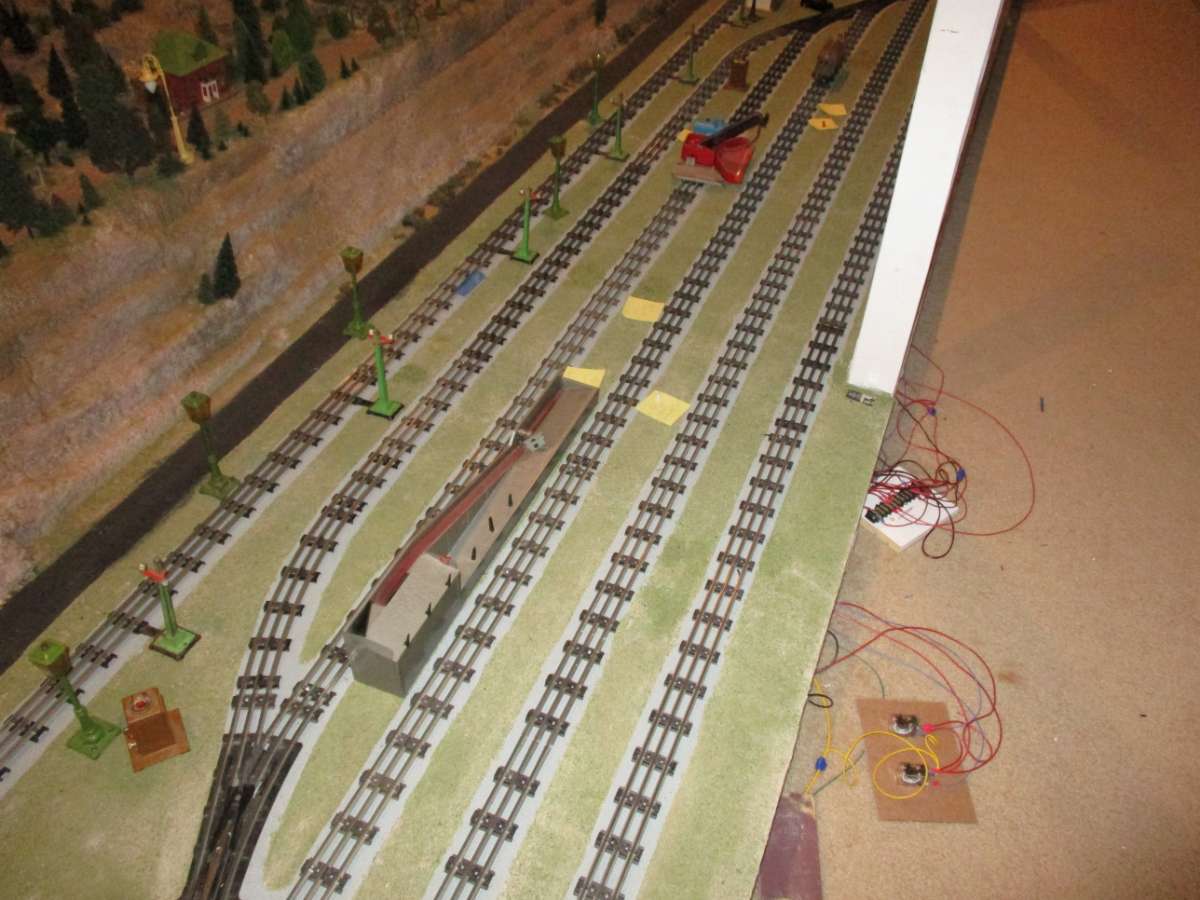

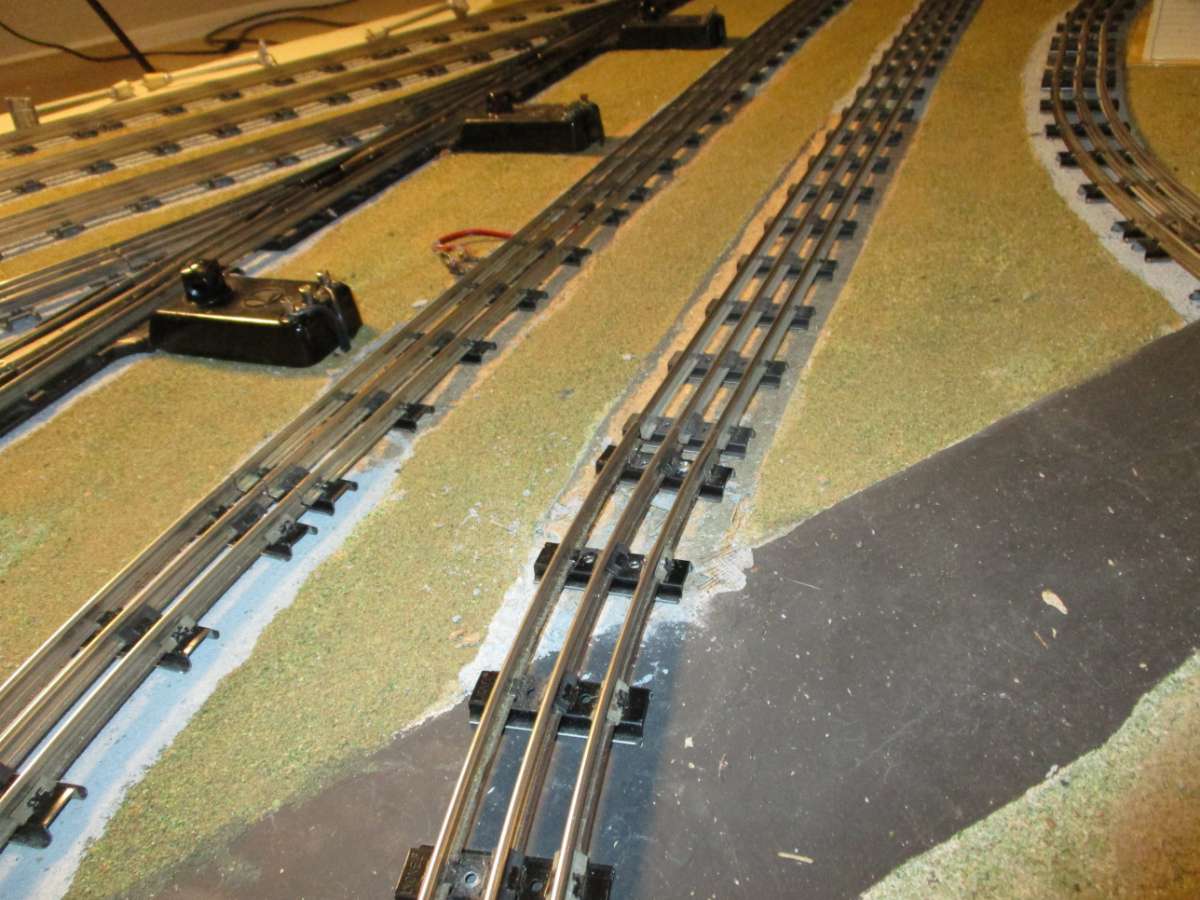

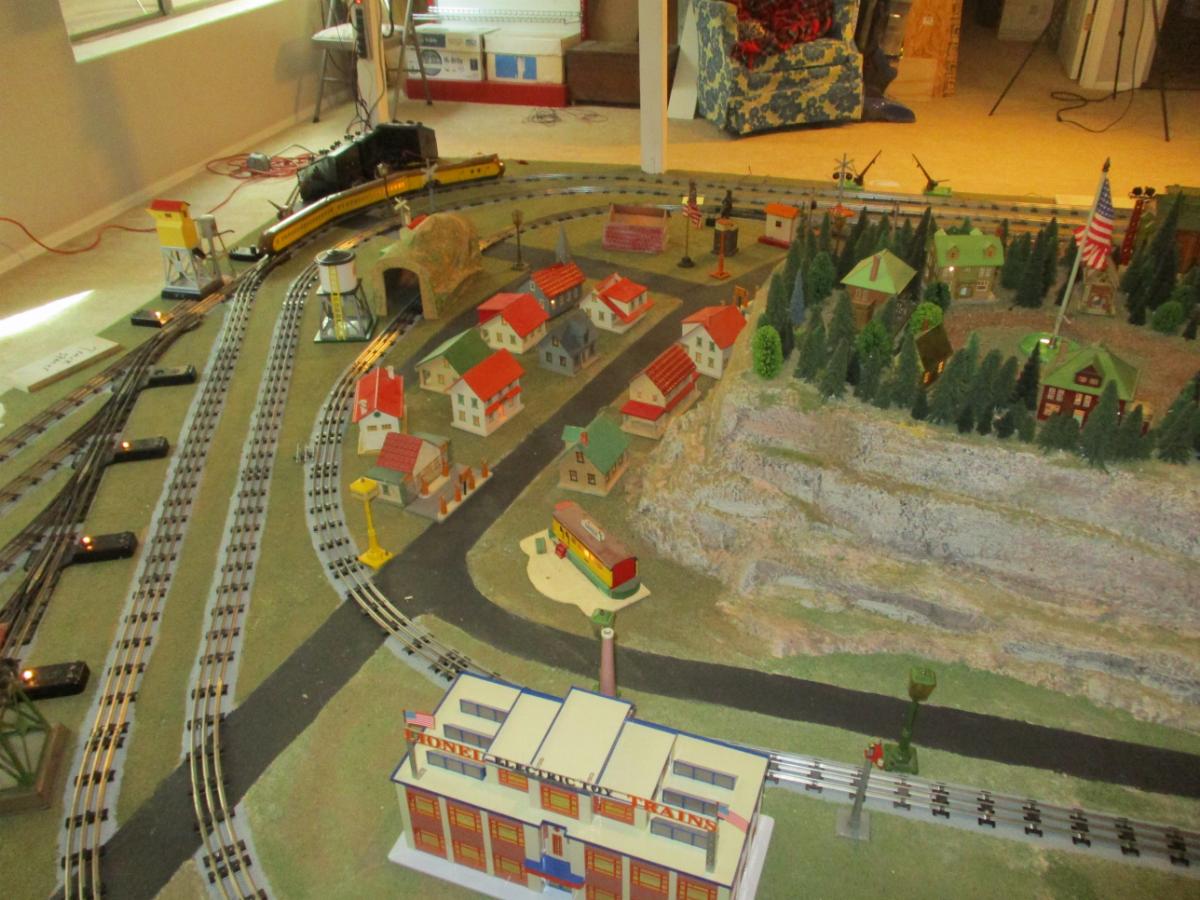

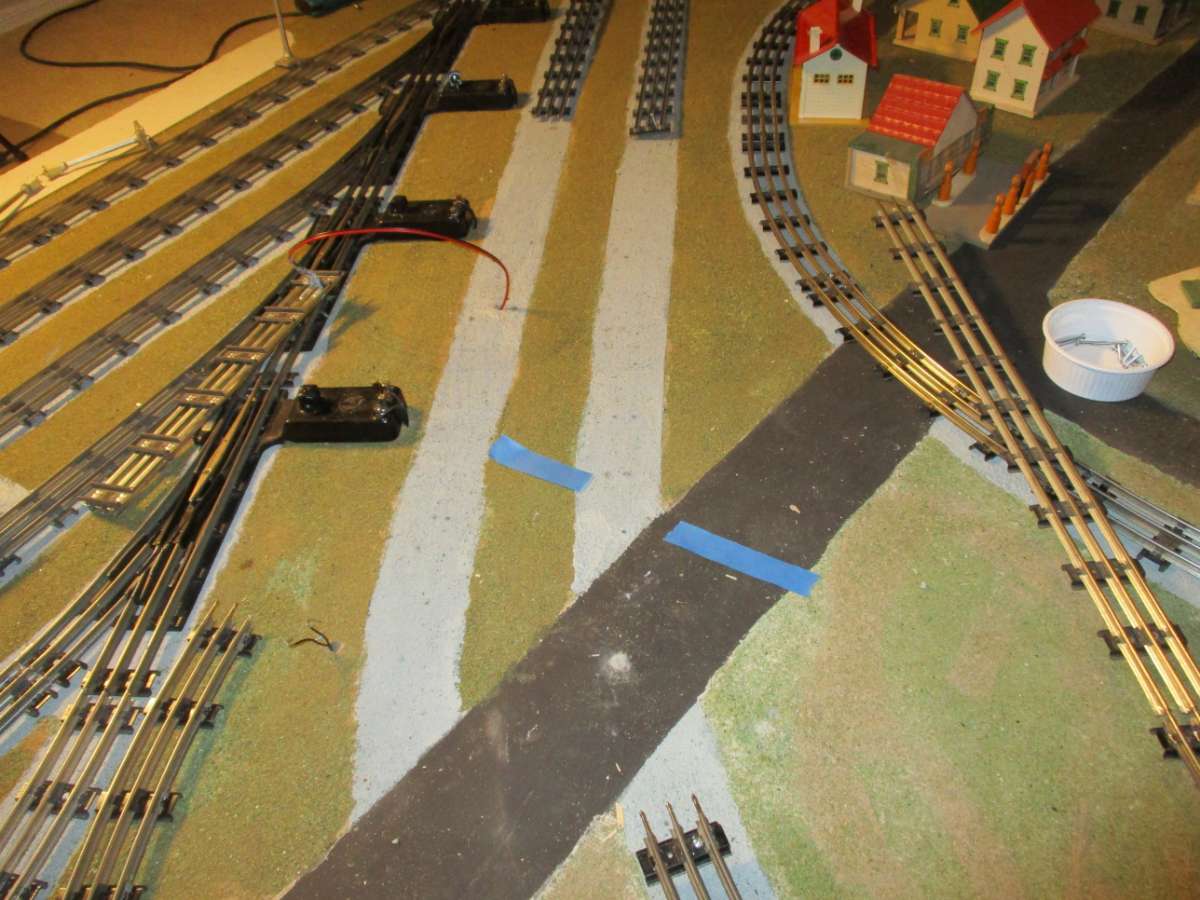

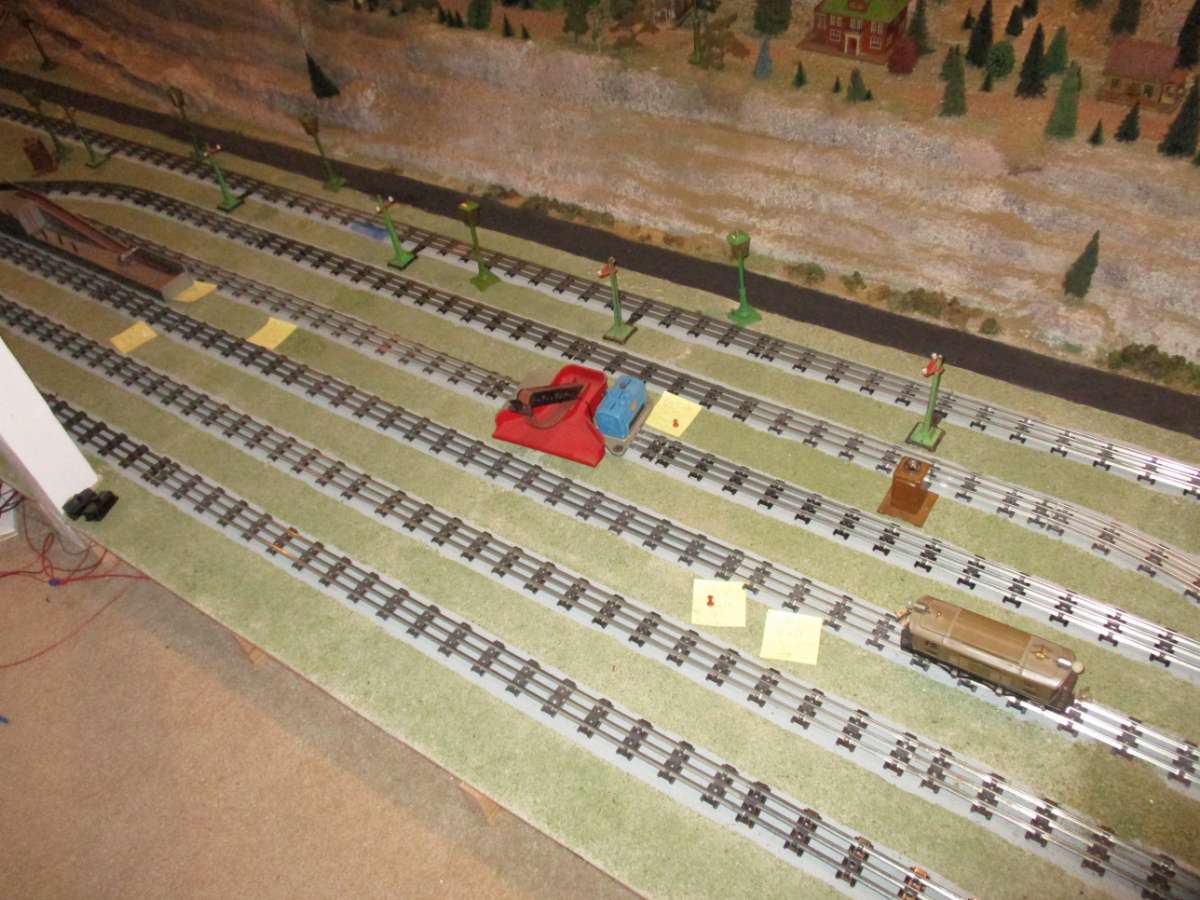

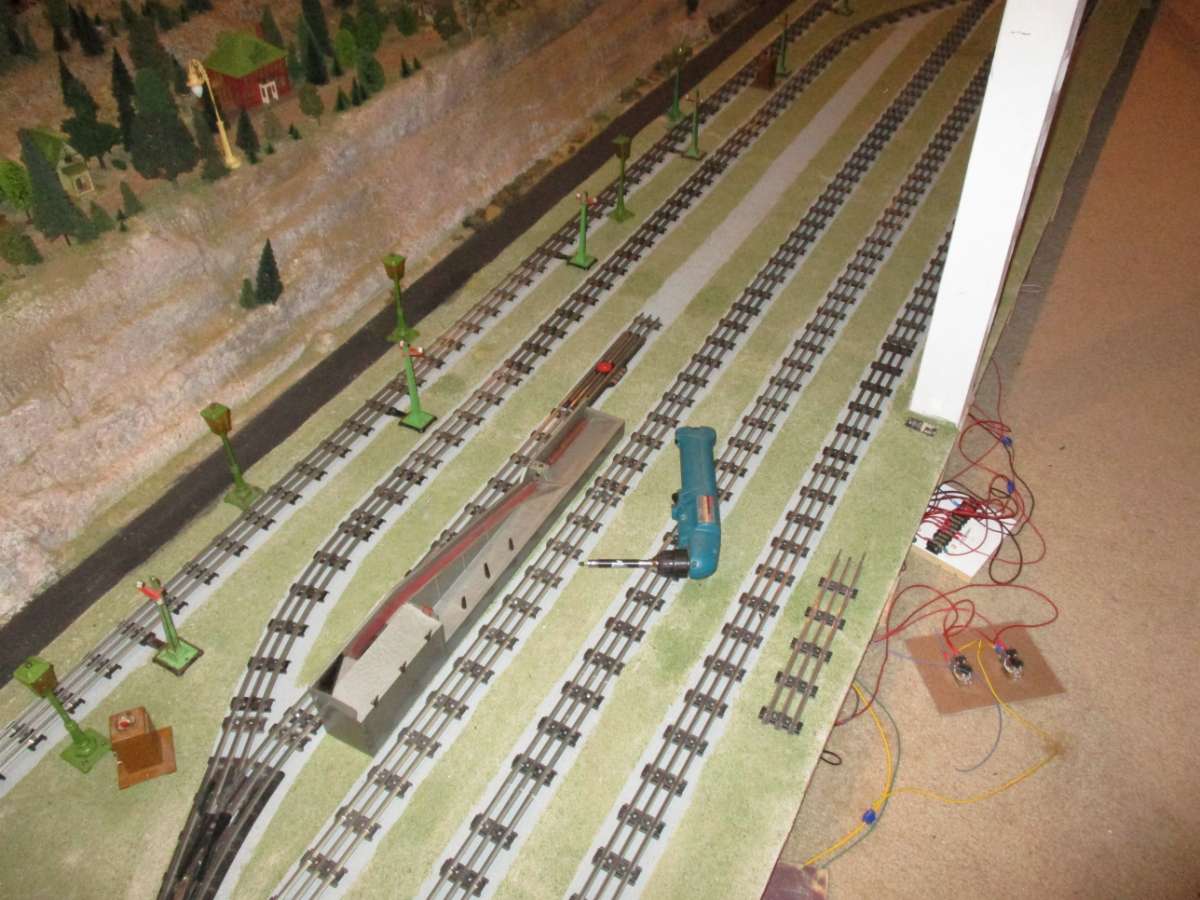

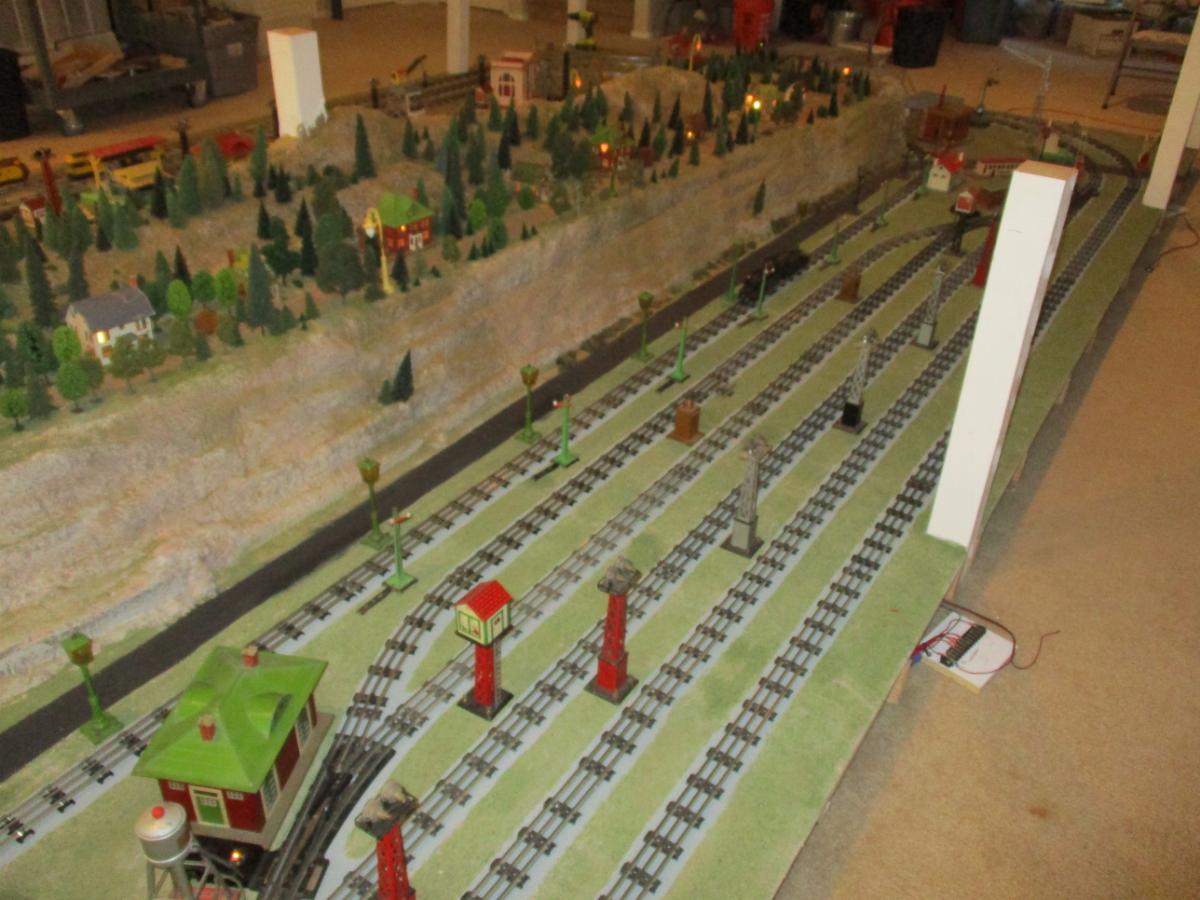

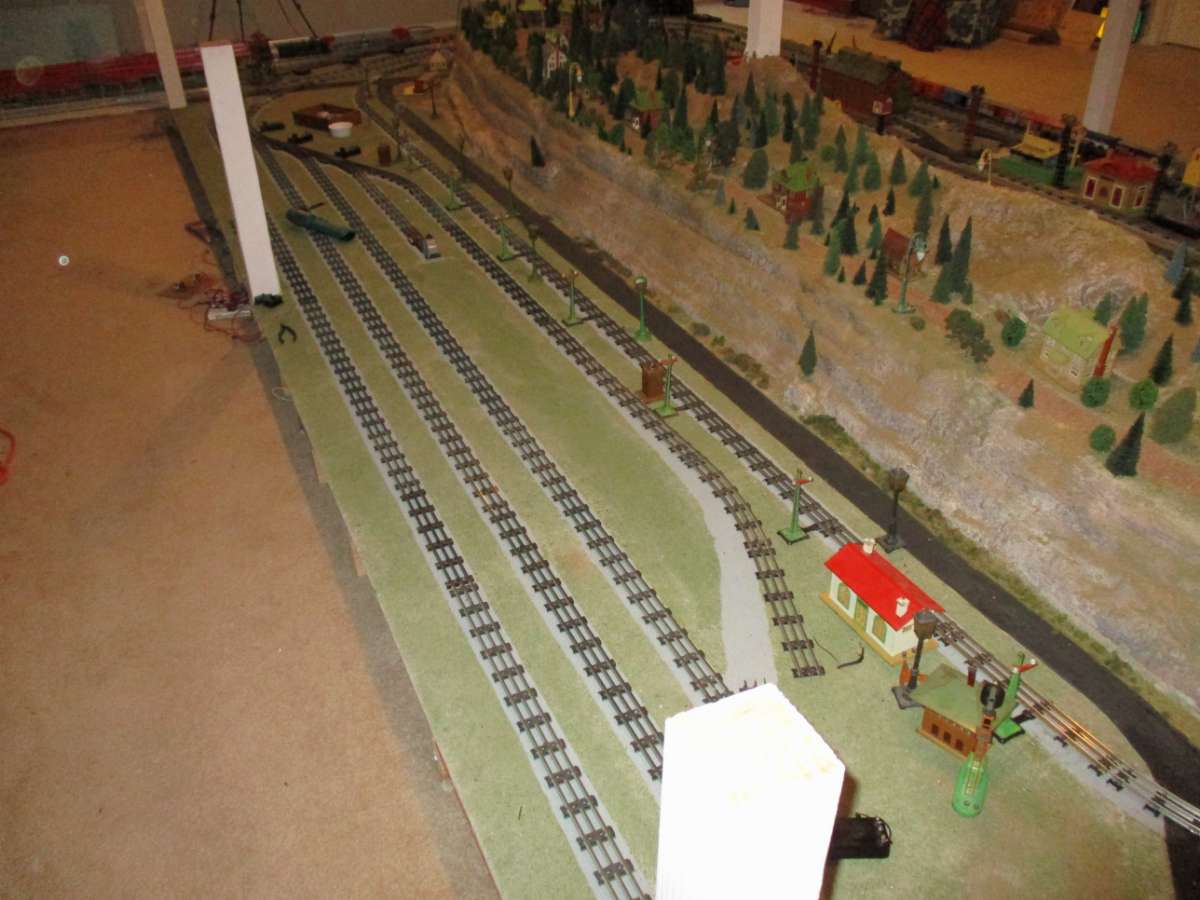

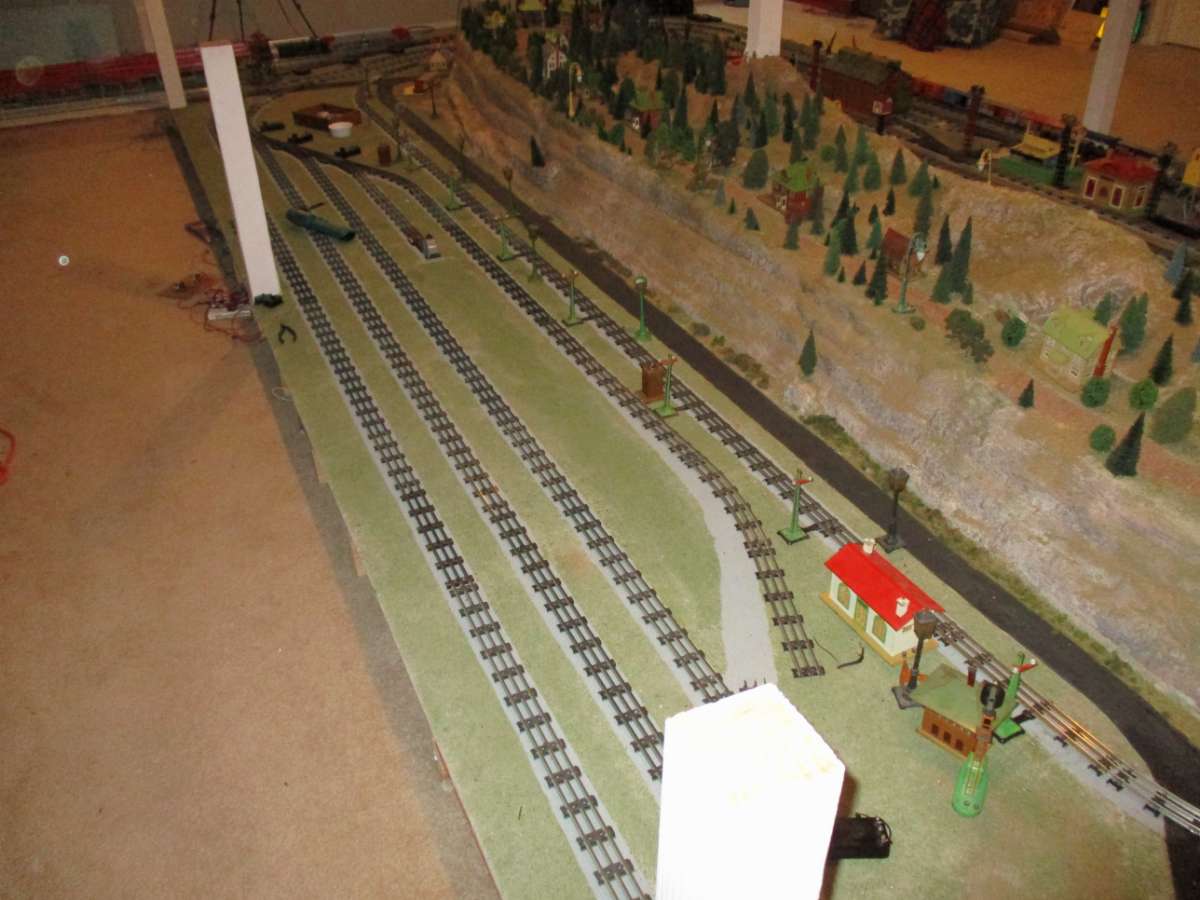

The northeast corner of the layout has the ends of the freight yard, and otherwise is bare. I'll add trees and some cows or something later. Post-it notes tell me where the insulating pins go. I'm not planning on using the blocks when running trains. I wired the entire layout so there are 12-15  foot blocks so if there is a short in the layout later I can isolate it to a specific area.

  [ You are not allowed to view attachments ]

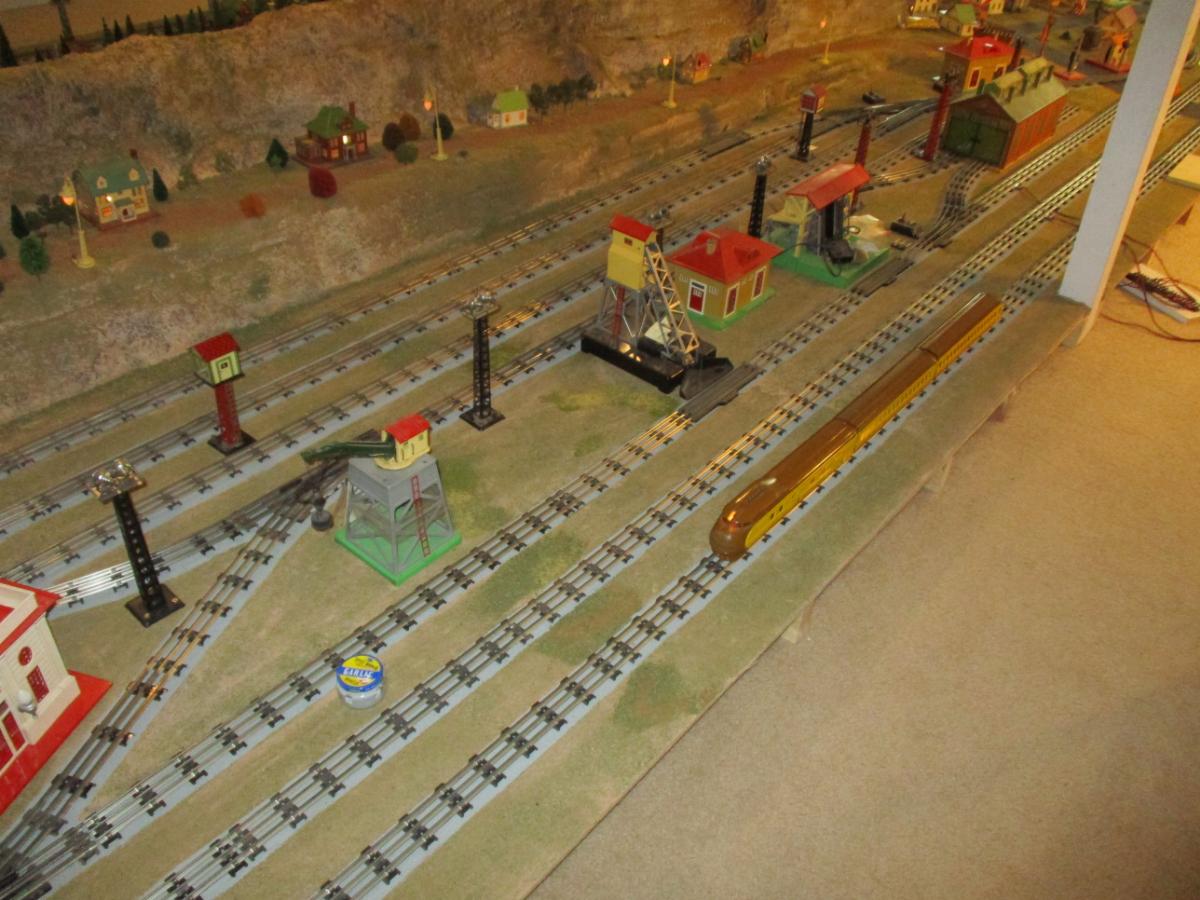

Here's the operating accessories. The inner and outer loops are hooked to an MRC transformer with a hand held controller. I'll wire the accessories so the controllers are at the front edge of the layout. This way I can run the switcher up and dump the car, then run around and refill the cars.

  [ You are not allowed to view attachments ]

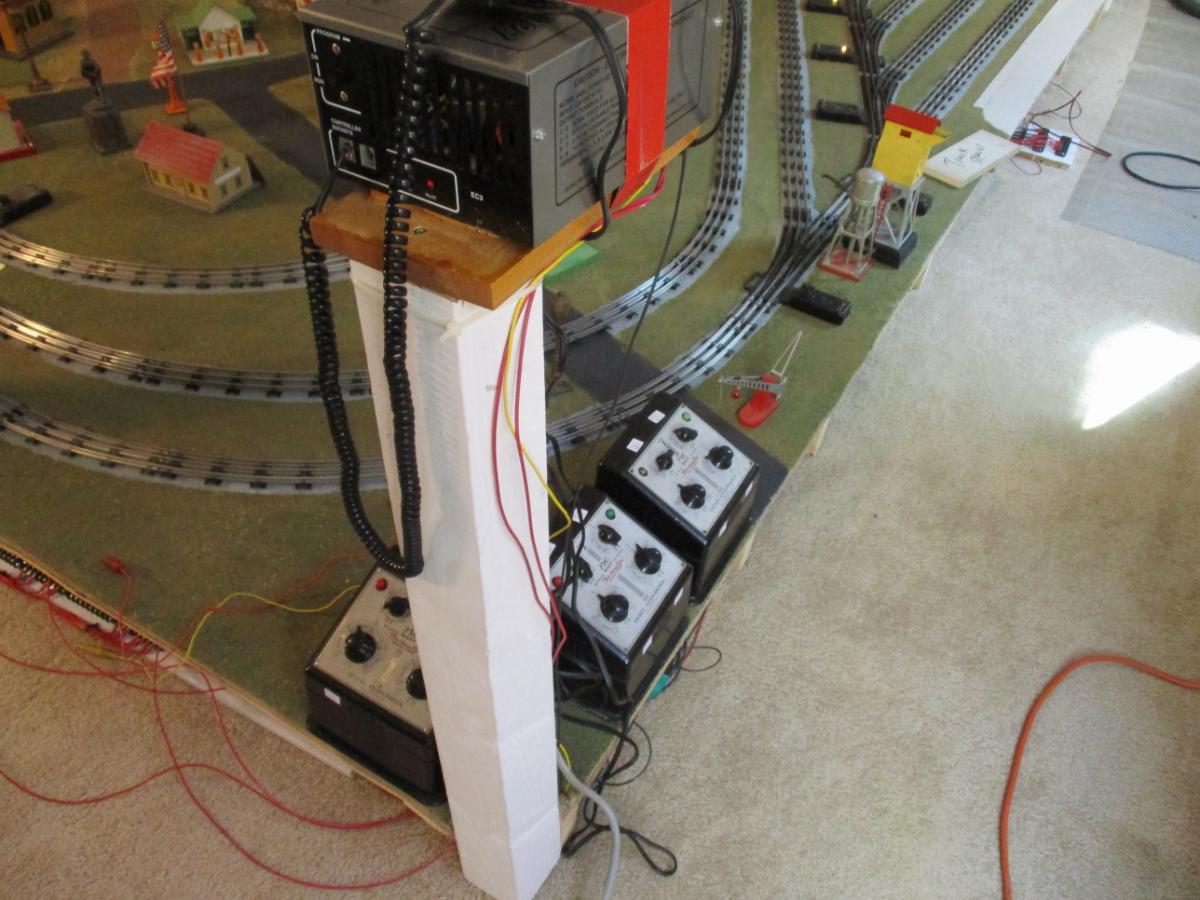

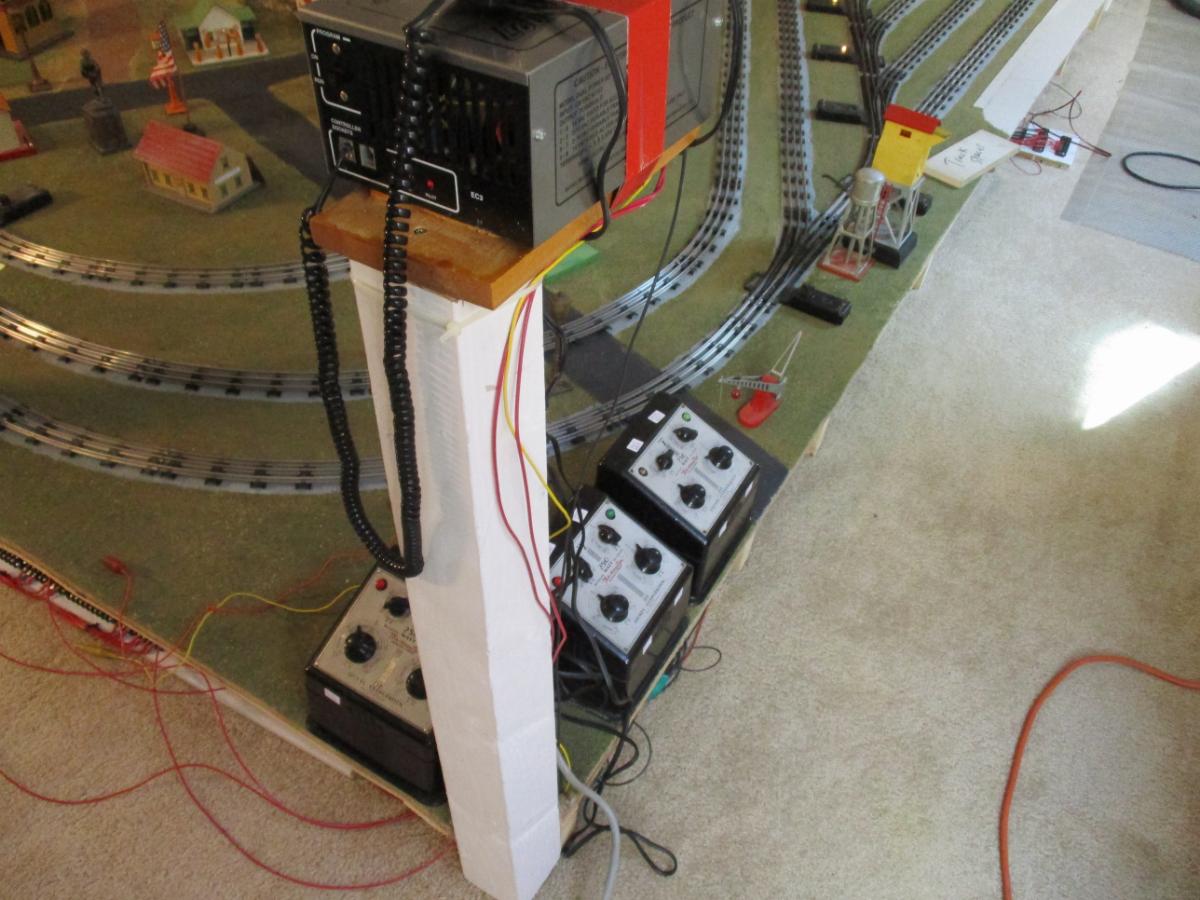

Here's the power supplies. The MRC transformer on the post will be hidden in the framing of the standard gauge layout. The three Z transformers are already connected to feeders under the layout.  Two of the big knobs on the single Z are used for the middle loop of track.  The other knobs each do a specific area.

  [ You are not allowed to view attachments ]

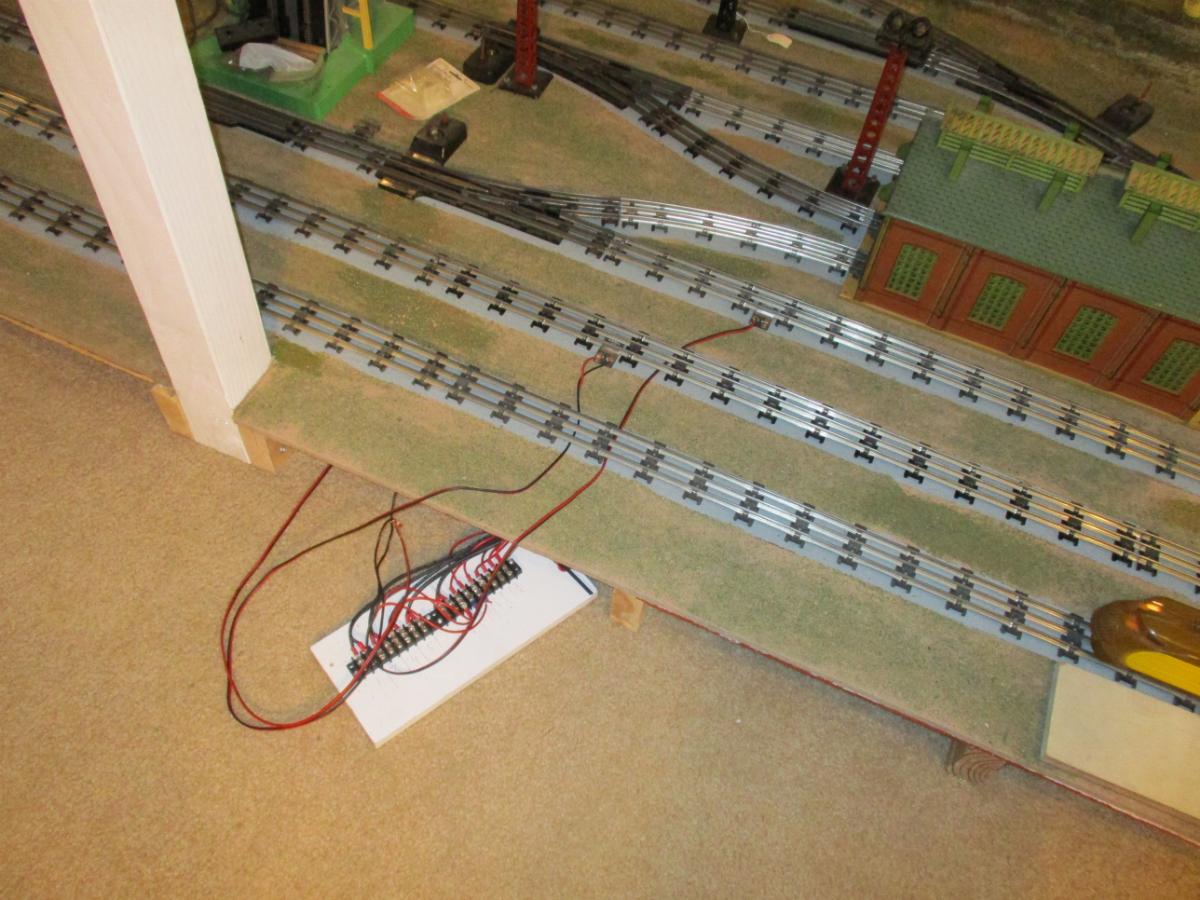

This shows the terminal strips under the layout. The back wires are for the freight yard switches, and the red/black wires are for the track. When I just soldier wires to the track, I can do the permanent feeders quickly. Making track sections with insulated rails takes longer.

It's coming together.



Terry

  • Administrator
  • Sr. Member
  • *****
  • Posts: 254
    • View Profile
    • eBay Auctions
I bought a postwar Santa Fe aluminum passenger set today from the original owner. She got it in 1953. Lionel 2353 AA with 4 matched hex head rivet cars. There is also an extra dome car with round head rivits. A little oil on it and it runs great, even all the lights work.

Here's a video I shot of it racing around the track with the City of Portland set.


For the 2353 the horn is in the dummy A unit. When I was setting it up, I thought moving the weight from the loco to the dummy would efect pulling power, but i can't see it.

starfire700

  • Full Member
  • ***
  • Posts: 229
    • View Profile
    • ebay auctions
Re: Terry's Layout
« Reply #47 »
Layout looks great and you put it together in a relatively short time. It should be fun to operate.

Terry

  • Administrator
  • Sr. Member
  • *****
  • Posts: 254
    • View Profile
    • eBay Auctions
Re: Terry's Layout
« Reply #48 »

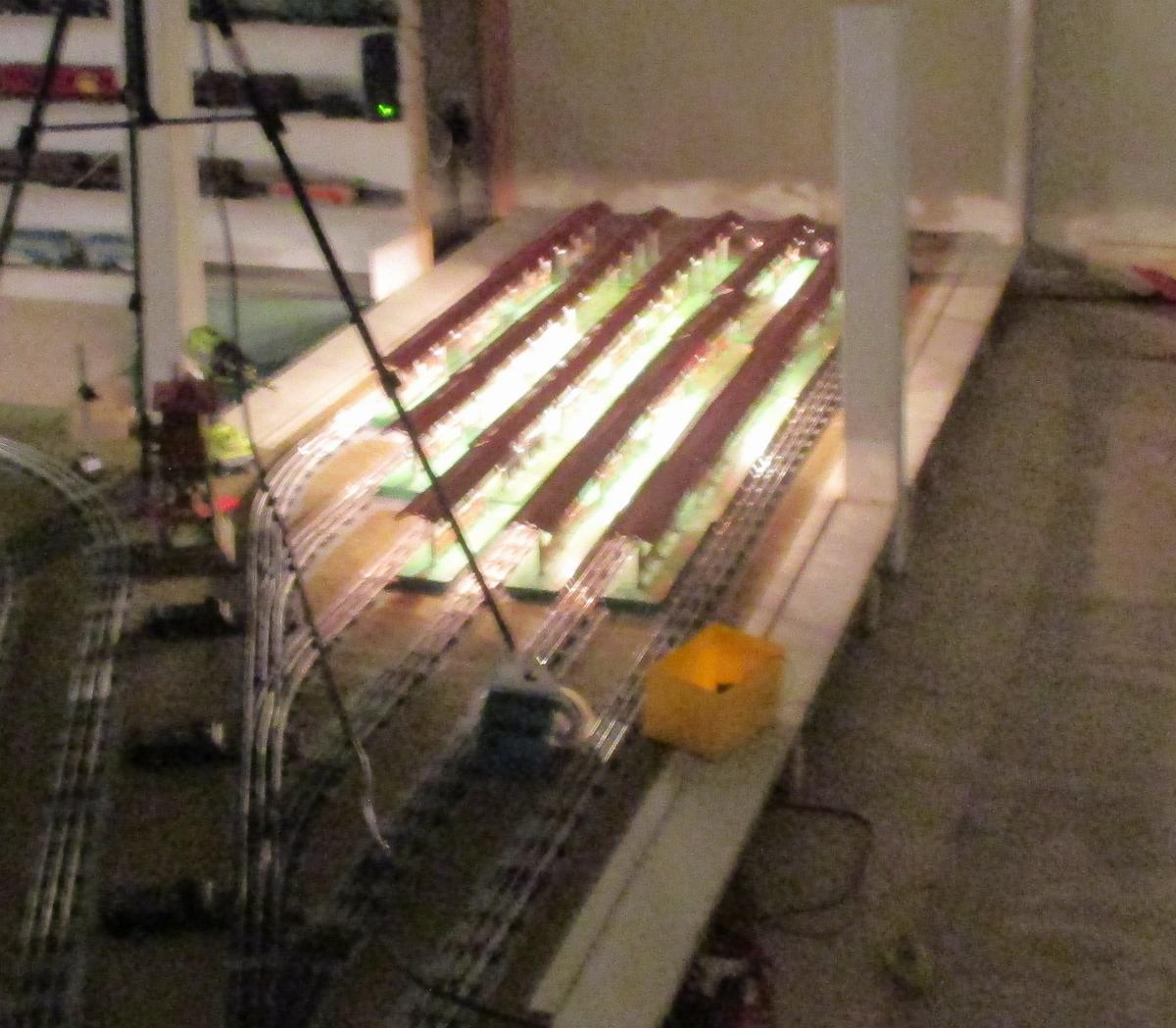

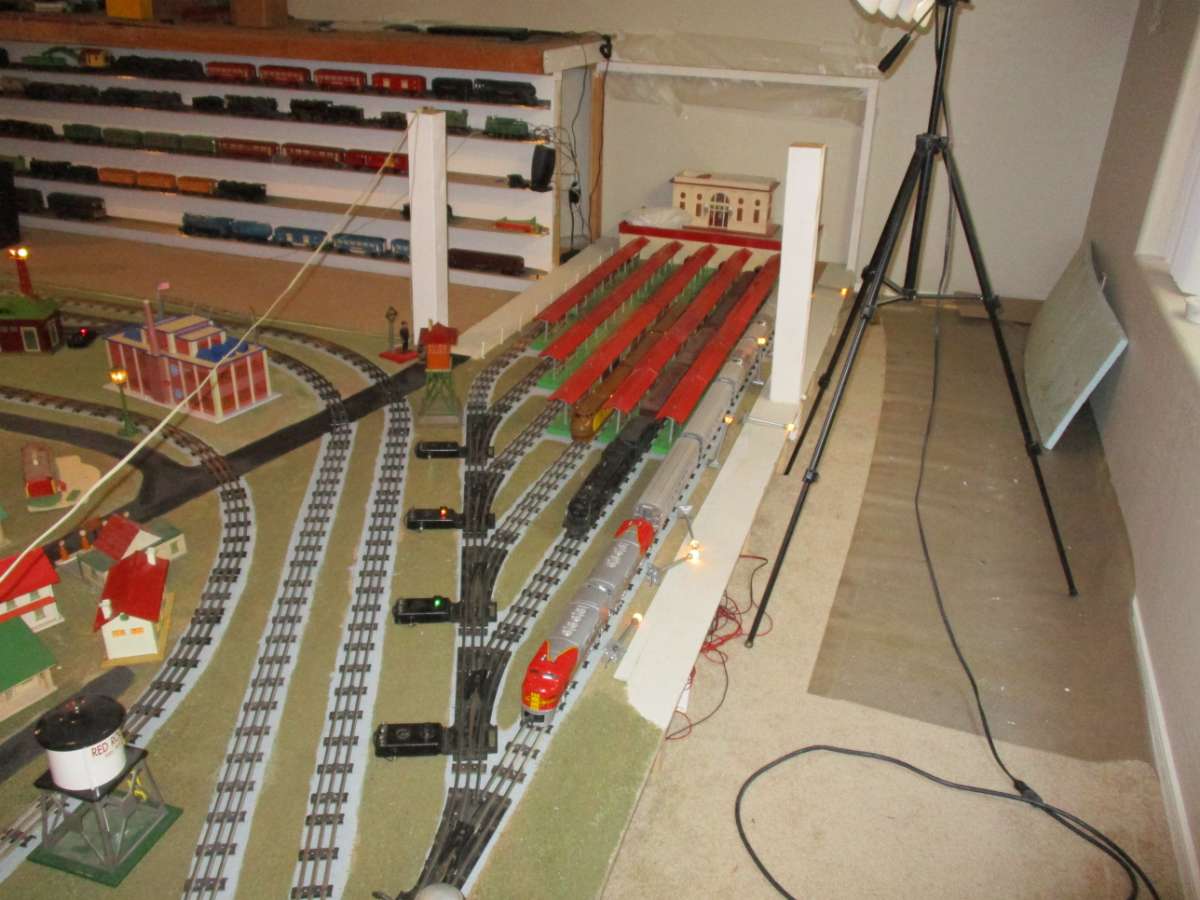

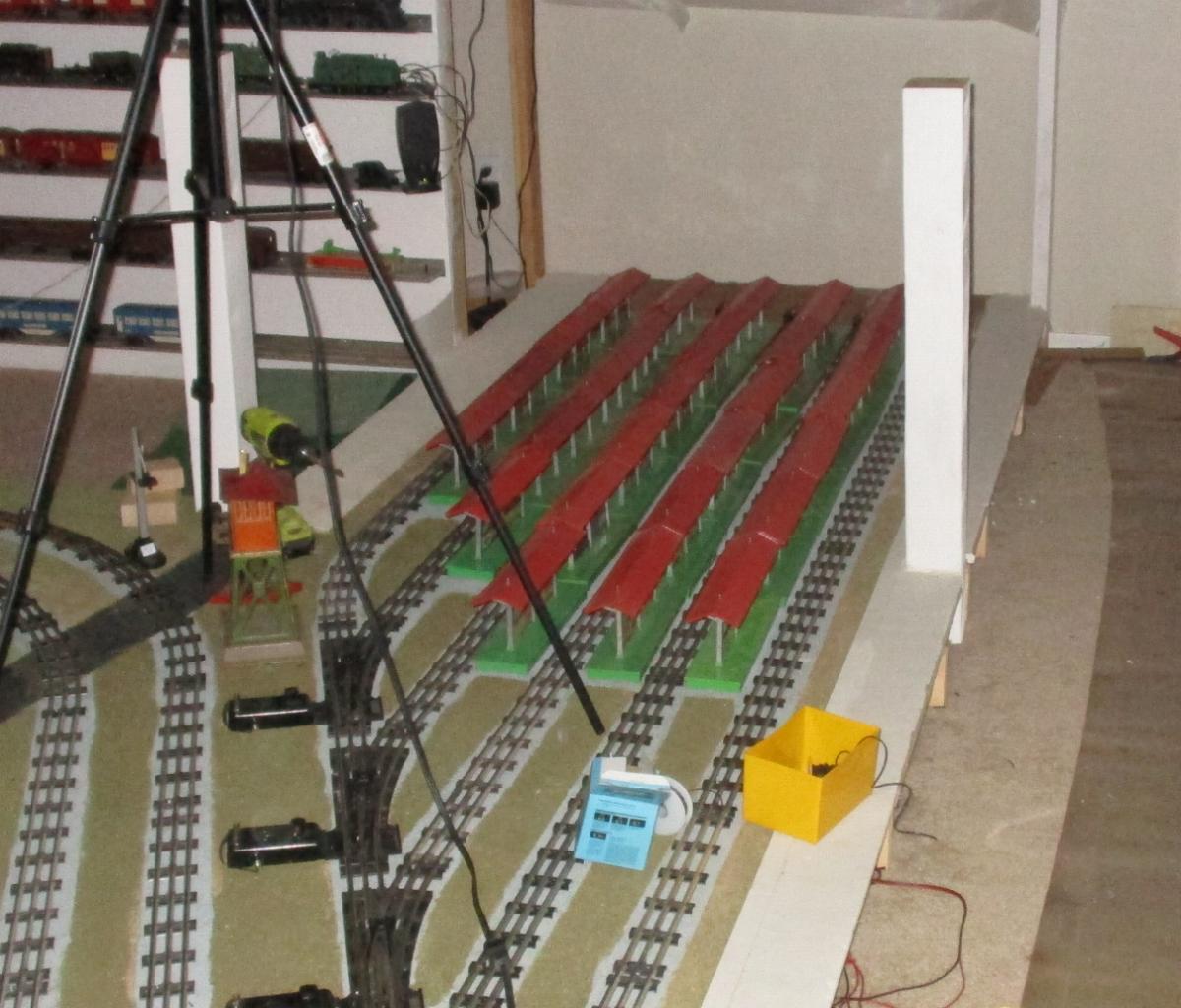

Here's the 156 station platforms. I bought 4 of these at a show last weekend for $10 each. I'm glad I did. I only have one whole platform left. Based on the parts I have left over, the roofs are broken much more commonly than the bases.

  [ You are not allowed to view attachments ]
  [ You are not allowed to view attachments ]

I made a box to go under the 116 station in the area between the sheds and the wall. It will be 514R Ivory and 45N red on the upper portion.

Here's the box before painting:

  [ You are not allowed to view attachments ]
